IS25LP01GG-RHLE-TR

Active

ISSI, Integrated Silicon Solution Inc

IC FLASH 1GBIT SPI/QUAD

Search across all available documentation for this part.

Active

ISSI, Integrated Silicon Solution Inc

IC FLASH 1GBIT SPI/QUAD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 7.80

General part information

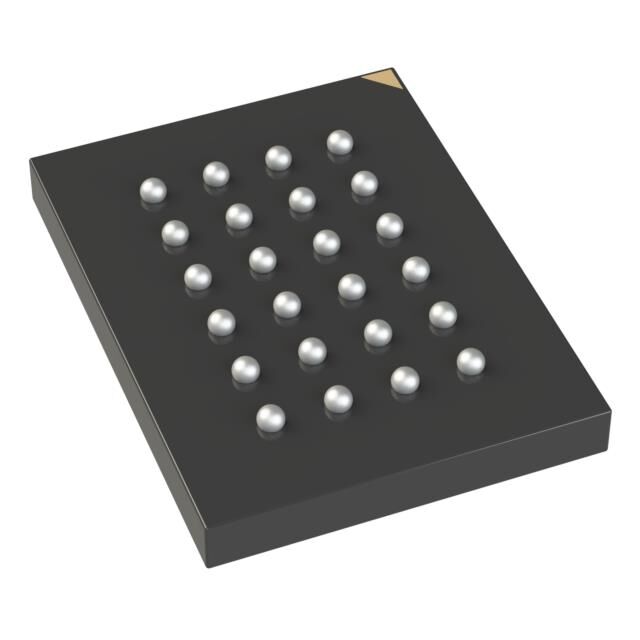

FLASH - NOR (SLC) Memory IC 1Gbit SPI - Quad I/O, QPI, DTR 166 MHz 6 ns 24-TFBGA (6x8)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	IS25LP01GG-RHLE-TR	IS25LP01G Series

Access Time	6 ns	6 ns
Clock Frequency	166 MHz	166 MHz
Memory Format	FLASH	FLASH
Memory Interface	Quad I/O, QPI, SPI, DTR	Quad I/O, QPI, SPI, DTR
Memory Organization	128 M	128 M
Memory Size	1 Mbit	1 Mbit
Memory Type	Non-Volatile	Non-Volatile
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	105 °C	105 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	24-TBGA	24-TBGA, 8-WDFN Exposed Pad
Supplier Device Package	24-TFBGA (6x8)	24-TFBGA (6x8), 8-WSON (8x6)
Technology	FLASH - NOR (SLC)	FLASH - NOR (SLC)
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	2.3 V	2.3 V
Write Cycle Time - Word, Page [custom]	70 µs	70 µs
Write Cycle Time - Word, Page [custom]	2 ms	2 ms

IC FLASH 1GBIT SPI/QUAD

Part	Technology	Clock Frequency	Access Time	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Size	Memory Organization	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Memory Format	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Memory Type	Supplier Device Package	Mounting Type	Memory Interface
ISSI, Integrated Silicon Solution Inc IS25LP01GG-RHLE	FLASH - NOR (SLC)	166 MHz	6 ns	2.3 V	3.6 V	1 Mbit	128 M	70 µs	2 ms	FLASH	24-TBGA	105 °C	-40 °C	Non-Volatile	24-TFBGA (6x8)	Surface Mount	DTR, QPI, Quad I/O, SPI
ISSI, Integrated Silicon Solution Inc IS25LP01GG-RHLE-TR	FLASH - NOR (SLC)	166 MHz	6 ns	2.3 V	3.6 V	1 Mbit	128 M	70 µs	2 ms	FLASH	24-TBGA	105 °C	-40 °C	Non-Volatile	24-TFBGA (6x8)	Surface Mount	DTR, QPI, Quad I/O, SPI
ISSI, Integrated Silicon Solution Inc IS25LP01GG-RMLE-TR	FLASH - NOR (SLC)	166 MHz	6 ns	2.3 V	3.6 V	1 Mbit	128 M	70 µs	2 ms	FLASH	8-WDFN Exposed Pad	105 °C	-40 °C	Non-Volatile	8-WSON (8x6)	Surface Mount	DTR, QPI, Quad I/O, SPI
ISSI, Integrated Silicon Solution Inc IS25LP01GG-RMLE-TY	FLASH - NOR (SLC)	166 MHz	6 ns	2.3 V	3.6 V	1 Mbit	128 M	70 µs	2 ms	FLASH	8-WDFN Exposed Pad	105 °C	-40 °C	Non-Volatile	8-WSON (8x6)	Surface Mount	DTR, QPI, Quad I/O, SPI
