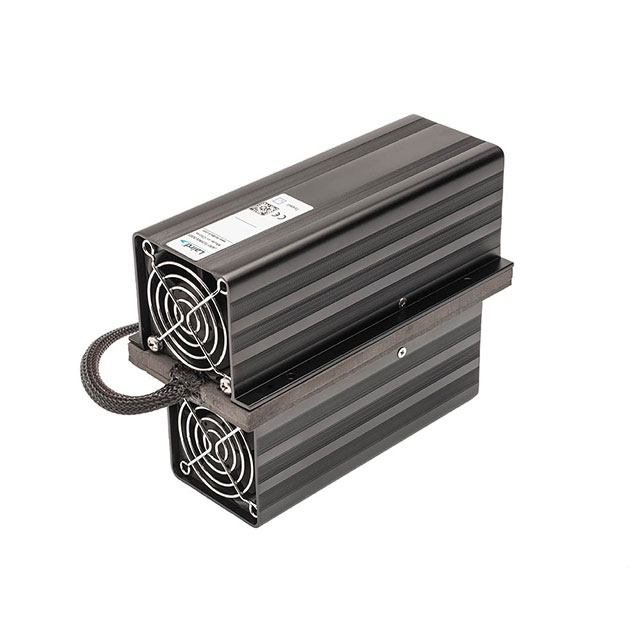

387000176
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY AIR-AIR 55W
387000176
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY AIR-AIR 55W
Description
General part information
387000176
Air to Air Thermoelectric Assembly 55 W
Technical Specifications
Parameters and characteristics for this part
| Specification | 387000176 |
|---|---|
| Current | 2.6 A |
| Dimensions - Overall Height | 142 mm |
| Dimensions - Overall Length | 180 mm |
| Dimensions - Overall Width | 84 mm |
| Fan Location | Warm Side, Cold Side |
| Heat Transfer Type | Air to Air |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -10 °C |
| Power - Cooling | 55 W |
| Voltage | 24 V |
| Weight | 3.7 lbs |
