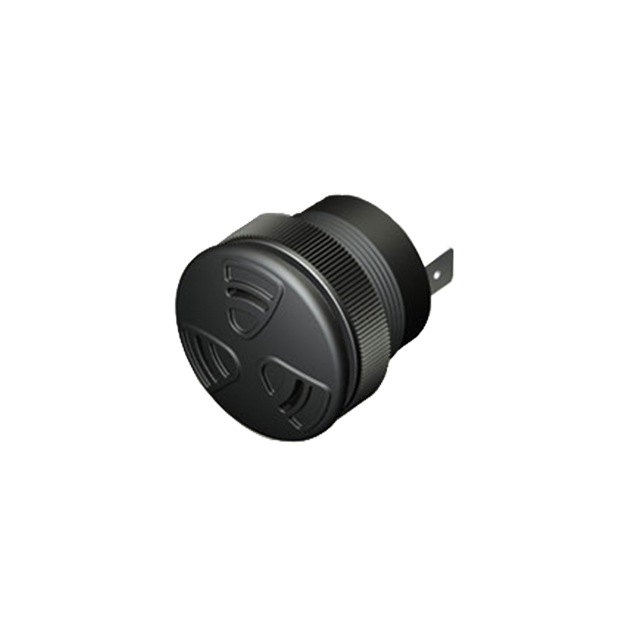

BUZZER PIEZO 33.02MM PNL MNT

Search across all available documentation for this part.

Active

Floyd Bell Inc

BUZZER PIEZO 33.02MM PNL MNT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TXT-86-515-Q	TXT-86 Series

Approval Agency	UR, UL	UR, UL
Current - Supply [Max]	50 mA	50 mA
Current - Supply [Min]	10 mA	10 mA
Driver Circuitry	Internally Driven, Indicator	Internally Driven, Indicator
Frequency	2.9 kHz	2.9 kHz
Height - Seated (Max) [Max] [z]	1.18 in	1.18 in
Height - Seated (Max) [Max] [z]	29.97 mm	29.97 mm
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Input Type	DC	DC
Operating Mode	Staccato Tone	Staccato Tone
Port Location	Top	Top
Size / Dimension [diameter]	1.3 in	1.3 in
Size / Dimension [diameter]	33.02 mm	33.02 mm
Sound Pressure Level (SPL)	103 dB	103 dB
Technology	Piezo	Piezo
Termination	Quick Connect Tab - 0.250" (6.35mm)	Quick Connect Tab - 0.250" (6.35mm), Wire Leads, Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Voltage Range [Max]	15 V	15 V
Voltage Range [Min]	5 VDC	5 VDC

BUZZER PIEZO 33.02MM PNL MNT

Part	Termination	Input Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Mode	Voltage Range [Min]	Voltage Range [Max]	Approval Agency	Technology	Ingress Protection	Frequency	Sound Pressure Level (SPL)	Port Location	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Driver Circuitry	Current - Supply [Max]	Current - Supply [Min]
Floyd Bell Inc TXT-86-515-Q	Quick Connect Tab - 0.250" (6.35mm)	DC	1.3 in	33.02 mm	Staccato Tone	5 VDC	15 V	UL, UR	Piezo	IP68 - Dust Tight, Waterproof	2.9 kHz	103 dB	Top	1.18 in	29.97 mm	Indicator, Internally Driven	50 mA	10 mA
Floyd Bell Inc TXT-86-515-W	Wire Leads	DC	1.3 in	33.02 mm	Staccato Tone	5 VDC	15 V	UL, UR	Piezo	IP68 - Dust Tight, Waterproof	2.9 kHz	103 dB	Top	1.18 in	29.97 mm	Indicator, Internally Driven	50 mA	10 mA
Floyd Bell Inc TXT-86-515-S	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)	DC	1.3 in	33.02 mm	Staccato Tone	5 VDC	15 V	UL, UR	Piezo	IP68 - Dust Tight, Waterproof	2.9 kHz	103 dB	Top	1.18 in	29.97 mm	Indicator, Internally Driven	50 mA	10 mA
