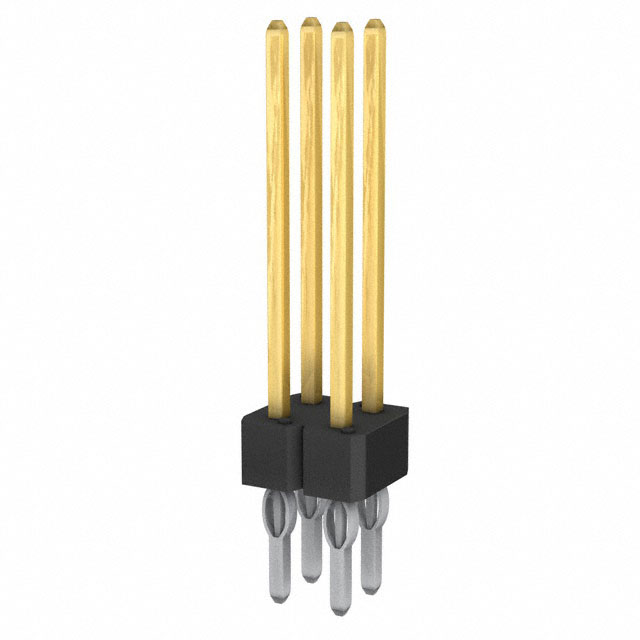

Specification	93690-104-04LF

Connector Type	Breakaway, Header
Contact Finish - Mating	GXT™, Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 µin
Contact Finish Thickness - Post	39.4 µin
Contact Length - Mating	0.583 in
Contact Length - Post	0.187 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Overall Contact Length	0.872 in
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Shrouding	Unshrouded
Style	Board, Board or Cable
Termination	Press-Fit, Solder
Voltage Rating	110 VDC

93690 Series

Part	Current Rating	Contact Finish - Post	Contact Type	Insulation Height	Number of Positions	Row Spacing - Mating	Contact Finish - Mating	Voltage Rating	Insulation Material	Overall Contact Length	Contact Shape	Style	Contact Length - Post	Contact Length - Mating	Termination	Shrouding	Insulation Color	Number of Rows	Connector Type	Fastening Type	Pitch - Mating	Mounting Type	Material Flammability Rating	Contact Material	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Post
Amphenol ICC (FCI) 93690-404-10LF	5 A	Tin	Male Pin	0.1 in	10	0.1 in	Tin	110 VDC	Thermoplastic	0.872 in	Square	Board Board or Cable	0.187 in	0.583 in	Press-Fit Solder	Unshrouded	Black	2	Breakaway Header	Push-Pull	0.1 in	Through Hole	UL94 V-0	Copper Alloy	All	120 µin	120 µin
Amphenol ICC (FCI) 93690-403-24LF	5 A	Tin	Male Pin	0.1 in	24 pos	0.1 in	Tin	110 VDC	Thermoplastic	0.505 in	Square	Board Board or Cable	0.177 in	0.224 in	Press-Fit Solder	Unshrouded	Black	2	Breakaway Header	Push-Pull	0.1 in	Through Hole	UL94 V-0	Copper Alloy	All	120 µin	120 µin
Amphenol ICC (FCI) 93690-103-50LF	5 A	Tin	Male Pin	0.1 in	50	0.1 in	Gold GXT™	110 VDC	Thermoplastic	0.505 in	Square	Board Board or Cable	0.177 in	0.224 in	Press-Fit Solder	Unshrouded	Black	2	Breakaway Header	Push-Pull	0.1 in	Through Hole	UL94 V-0	Copper Alloy	All	30 µin	39.4 µin
Amphenol ICC (FCI) 93690-102-20LF	5 A	Tin	Male Pin	0.1 in	20	0.1 in	Gold GXT™	110 VDC	Thermoplastic	0.685 in	Square	Board Board or Cable	0.177 in	0.399 in	Press-Fit Solder	Unshrouded	Black	2	Breakaway Header	Push-Pull	0.1 in	Through Hole	UL94 V-0	Copper Alloy	All	30 µin	39.4 µin
Amphenol ICC (FCI) 93690-105-60LF	5 A	Tin	Male Pin	0.1 in	60	0.1 in	Gold GXT™	110 VDC	Thermoplastic	0.608 in	Square	Board Board or Cable	0.177 in	0.327 in	Press-Fit Solder	Unshrouded	Black	2	Breakaway Header	Push-Pull	0.1 in	Through Hole	UL94 V-0	Copper Alloy	All	30 µin	39.4 µin
Amphenol ICC (FCI) 93690-101-16LF	5 A	Tin	Male Pin	0.1 in	16	0.1 in	Gold GXT™	110 VDC	Thermoplastic	0.582 in	Square	Board Board or Cable	0.177 in	0.295 in	Press-Fit Solder	Unshrouded	Black	2	Breakaway Header	Push-Pull	0.1 in	Through Hole	UL94 V-0	Copper Alloy	All	30 µin	39.4 µin
Amphenol ICC (FCI) 93690-105-30LF	5 A	Tin	Male Pin	0.1 in	30	0.1 in	Gold GXT™	110 VDC	Thermoplastic	0.608 in	Square	Board Board or Cable	0.177 in	0.327 in	Press-Fit Solder	Unshrouded	Black	2	Breakaway Header	Push-Pull	0.1 in	Through Hole	UL94 V-0	Copper Alloy	All	30 µin	39.4 µin
Amphenol ICC (FCI) 93690-103-20			Male Pin	0.1 in	20	0.1 in	Gold GXT™		Thermoplastic	0.505 in	Square	Board Board or Cable	0.177 in	0.224 in	Press-Fit Solder	Unshrouded	Black	2	Breakaway Header	Push-Pull	0.1 in	Through Hole	UL94 V-0	Copper Alloy	All	30 µin
Amphenol ICC (FCI) 93690-403-40LF	5 A	Tin	Male Pin	0.1 in	40	0.1 in	Tin	110 VDC	Thermoplastic	0.505 in	Square	Board Board or Cable	0.177 in	0.224 in	Press-Fit Solder	Unshrouded	Black	2	Breakaway Header	Push-Pull	0.1 in	Through Hole	UL94 V-0	Copper Alloy	All	120 µin	39.4 µin
Amphenol ICC (FCI) 93690-105-32			Male Pin	0.1 in	32	0.1 in	Gold GXT™		Thermoplastic	0.608 in	Square	Board Board or Cable	0.177 in	0.327 in	Press-Fit Solder	Unshrouded	Black	2	Breakaway Header	Push-Pull	0.1 in	Through Hole	UL94 V-0	Copper Alloy	All	30 µin
