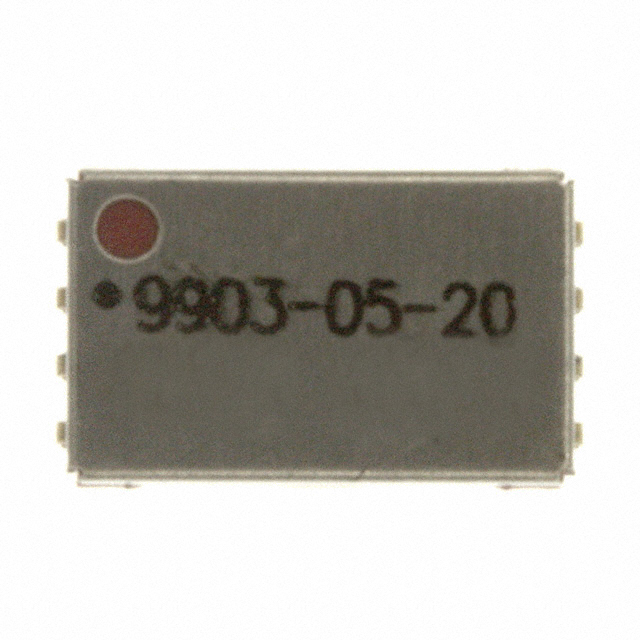

9903-05-20

Coto Technology

RELAY RF SPST-NO 250MA 5V

Search across all available documentation for this part.

Coto Technology

RELAY RF SPST-NO 250MA 5V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY RF SPST-NO 250MA 5V

Part	Release Time	Coil Current	Contact Rating (Current)	Must Release Voltage	Features	Coil Type	Mounting Type	Coil Voltage	Coil Resistance	Switching Voltage	Operate Time	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Contact Form
Coto Technology 9903-05-20	0.05 ms	33.3 mA	250 mA	0.4 VDC	Magnetic Shield	Non Latching	Surface Mount	5 VDC	150 Ohms	100 VAC, 100 VDC	0.25 ms	3.8 VDC	85 °C	-20 C	J Lead	SPST-NO (1 Form A)
Coto Technology 9903-05-20TR	0.05 ms	33.3 mA	250 mA	0.4 VDC	Magnetic Shield	Non Latching	Surface Mount	5 VDC	150 Ohms	100 VAC, 100 VDC	0.25 ms	3.8 VDC	85 °C	-20 C	J Lead	SPST-NO (1 Form A)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY RF SPST-NO 250MA 5V

Technical documentation and resources
