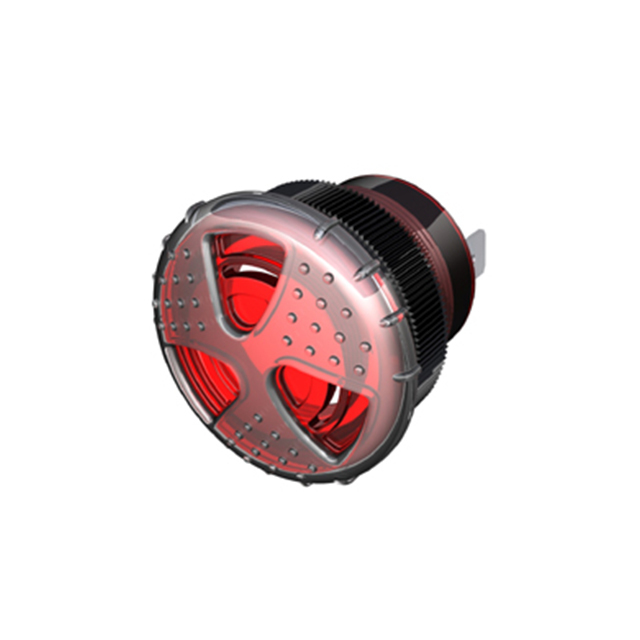

TUHT-V88R-930-Q
ActiveFloyd Bell Inc
BUZZER 35.81MM PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TUHT-V88R-930-Q
ActiveFloyd Bell Inc
BUZZER 35.81MM PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TUHT-V88R-930-Q |
|---|---|
| Approval Agency | UR, UL |
| Current - Supply [Max] | 125 mA |
| Current - Supply [Min] | 65 mA |
| Driver Circuitry | Internally Driven, Indicator |
| Frequency | 3 kHz |
| Height - Seated (Max) | 31.75 mm |
| Height - Seated (Max) [Max] | 1.25 in |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Input Type | DC |
| Operating Mode | Staccato Tone |
| Port Location | Top |
| Size / Dimension [diameter] | 1.41 in |
| Size / Dimension [diameter] | 35.81 mm |
| Sound Pressure Level (SPL) | 103 dB |
| Termination | Quick Connect Tab - 0.250" (6.35mm) |
| Voltage Range [Max] | 30 V |
| Voltage Range [Min] | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 56.14 | |
Description
General part information
TUHT-V88R-930-Q
Buzzers Indicator, Internally Driven 65 ~ 125mA 3kHz 103dB @ 30V, 61cm Panel Mount Quick Connect Tab - 0.250" (6.35mm)
