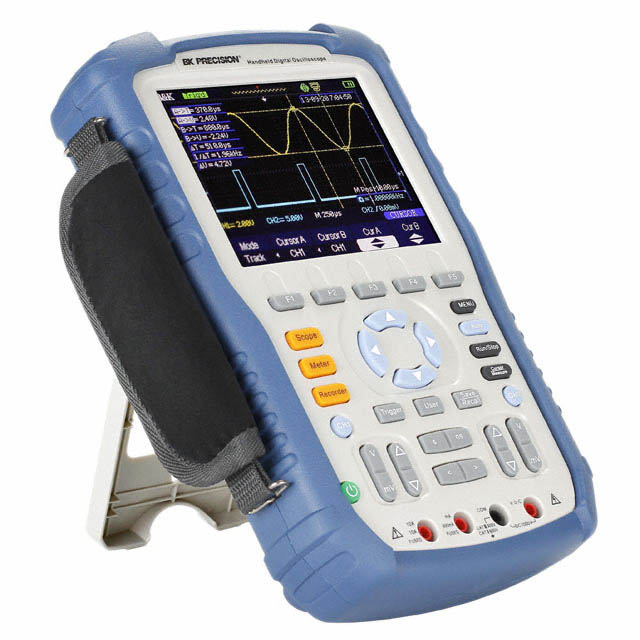

2516
ObsoleteB&K PRECISION
100MHZ ISLTD HANDHELD DIG OSCOPE
2516
ObsoleteB&K PRECISION
100MHZ ISLTD HANDHELD DIG OSCOPE
Description
General part information
2516
100 MHz Handheld Oscilloscopes USB Interface LCD - Color Display 2 Channel CAT II 1000V, CAT III 600V Record, Save, Trend, DMM
Technical Specifications
Parameters and characteristics for this part
| Specification | 2516 |
|---|---|
| Analog Channels | 2 |
| Bandwidth | 100 MHz |
| Channel Types | Analog |
| Channels (Count) | 2 |
| Display Type | LCD - Color |
| Function | DMM, Trend, Record, Save |
| Includes | Adapter, Manual, Test Leads, Case, Cable, Battery, Connector |
| Input Impedance (Capacitance) | 16 pF |
| Input Impedance (Resistance) | 1 MΩ |
| Interface | USB |
| Memory Size | 2 K Octets |
| Probe Attenuation | 10 ratio |
| Probe Count | 2 |
| Probe Type | Passive |
| Rise Time (Typ) | 3.5 ns |
| Sampling Rate (Per Second) | 1 GHz |
| Type | Handheld |
| Voltage - Input (Max) (CAT II) | 1000 V |
| Voltage - Input (Max) (CAT III) | 600 V |
| Voltage - Input (Max) Category | CAT III, CAT II |
| Voltage - Input (Max) Rating | CAT II, CAT III |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 100 VAC |
