OGH312
Activeifm efector, inc.

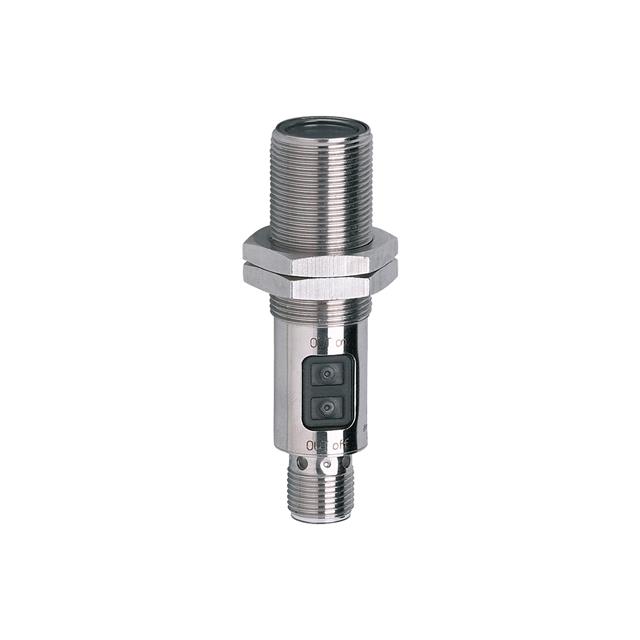

PHOTOELECTRIC SENSOR,18MM THREAD
OGH312
Activeifm efector, inc.
PHOTOELECTRIC SENSOR,18MM THREAD
Description
General part information
OGH312
Diffuse Optical Sensor 0.591" ~ 11.811" (15mm ~ 300mm) PNP - Dark-ON/Light-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | OGH312 |
|---|---|
| Adjustment Type | Adjustable |
| Connection Method | Connector, M12 |
| Ingress Protection | IP69K, IP65, IP68, IP67 |
| Light Source | Red LED |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | Light-ON, PNP - Dark-ON |
| Sensing Distance Maximum | 11.811 " |
| Sensing Distance Minimum | 0.591 " |
| Sensing Method | Diffuse |
| Voltage - Supply (Maximum) | 36 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
