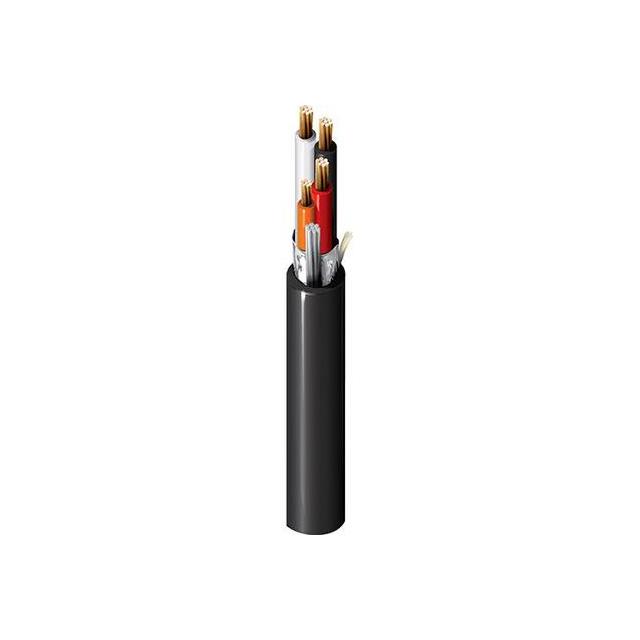

1092A 0102500

Active

Belden Inc.

CABLE 49COND 20AWG/22AWG

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 49COND 20AWG/22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	1092A 0102500

Cable Type	Multi-Triad
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand	30, 7 Strands, 28 AWG (2)
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	21.79 mm
Jacket (Insulation) Diameter [diameter]	0.858 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	2500 ft
Length	762 m
Number of Conductors	49
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	22, 20

CABLE 49COND 20AWG/22AWG

Part	Conductor Insulation	Jacket (Insulation) Material	Shield Material	Shield Coverage	Length	Length	Cable Type	Conductor Strand	Features	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Voltage	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Number of Conductors	Ratings
Belden Inc. 1092A 0102500	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Aluminum	100 %	2500 ft	762 m	Multi-Triad	7 Strands, 28 AWG (2), 30	Drain Wire, Rip Cord	Foil	-30 ░C	105 ░C	Copper, Bare	300 V	Black	21.79 mm	0.858 in	20, 22	49	UL Style 2464

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	2500	$ 12.83

General part information

49 (16 Triad Twisted) Conductor Multi-Triad Cable Black 20 AWG, 22 AWG Foil 2500' (762.0m)
