Description
General part information

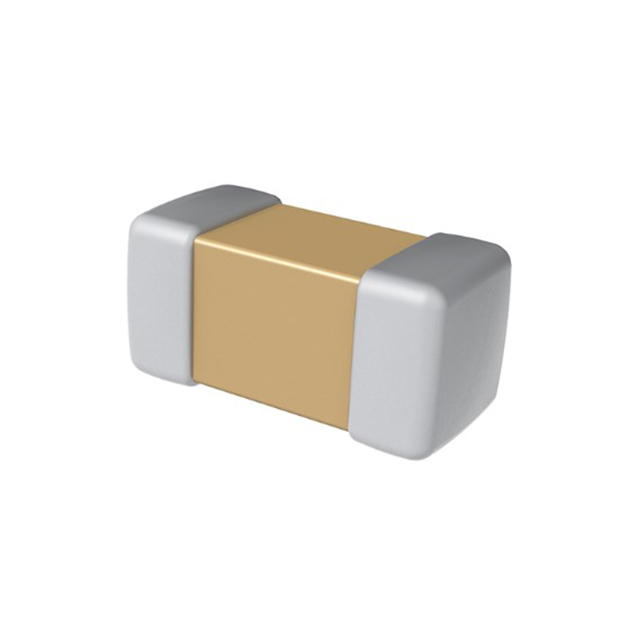

C0805C472J1GEC3020
4700 pF ±5% 100V Ceramic Capacitor C0G, NP0 0805 (2012 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | C0805C472J1GEC3020 |
|---|---|
| Applications | ESD Protection |
| Capacitance | 4700 pF |
| Features | Low ESR, Low ESL |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
| Temperature Coefficient | NP0, C0G |
| Tolerance | 5 % |
| Voltage - Rated | 100 VAC/DC |
