281-612/281-418
ActiveWAGO Corporation

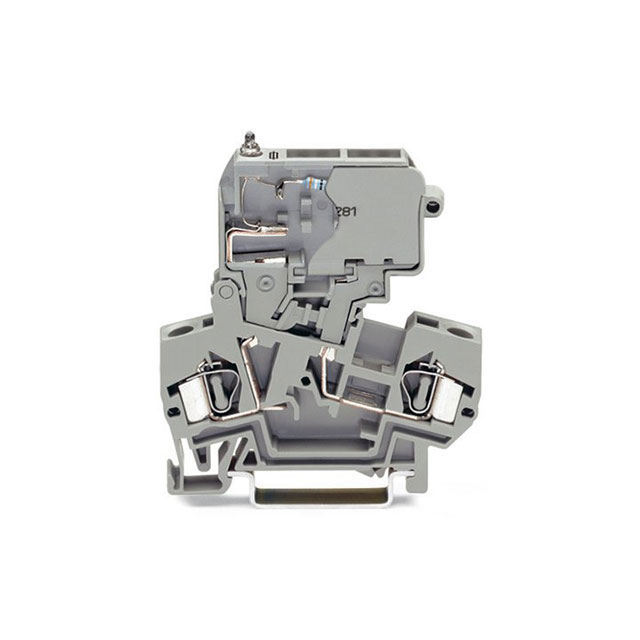

CONN FUSE DISCONNECT TERMINAL BLOCK 2 POS SPRING CLAMP DIN RAIL 10A BOX
281-612/281-418
ActiveWAGO Corporation
CONN FUSE DISCONNECT TERMINAL BLOCK 2 POS SPRING CLAMP DIN RAIL 10A BOX
Description
General part information
281-612/281-418
Terminal Block Connector 2 Position Disconnect Gray 12-28 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 281-612/281-418 |
|---|---|
| Color | Gray |
| Current - IEC | 10 A |
| Disconnect Type | Fuse |
| Features | Neon Lamp |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length (Max) | 10 mm |
| Stripping Length (Min) | 9 mm |
| Terminal Width | 8 mm |
| Termination Style | Push In, Spring |
| Type | Disconnect |
| Voltage - IEC | 800 V |
| Wire Gauge or Range - AWG (Max) | 28 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 4 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.08 mm² |
