VTC220LL-180L-RC

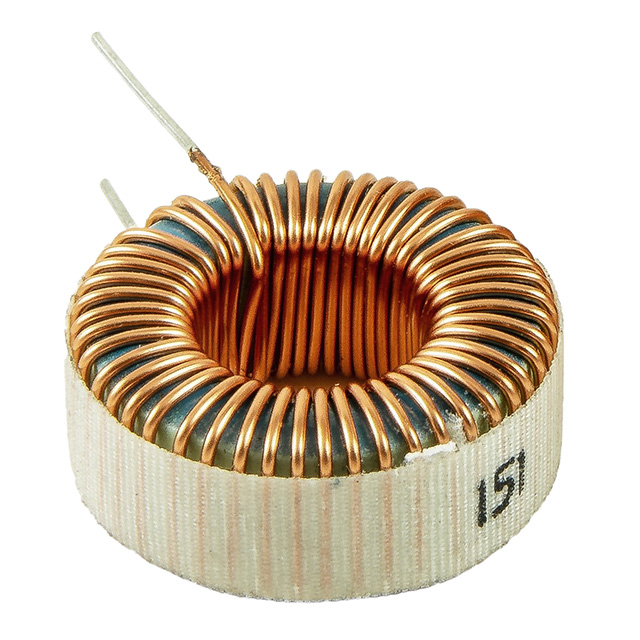

18 µH Unshielded Toroidal Inductor 13.1 A 7mOhm Max Vertical, No Base, 2 PC Pin
Technical Specifications
Parameters and characteristics for this part
| Specification | VTC220LL-180L-RC |
|---|---|
| Current Rating | 13.1 A |
| DC Resistance (DCR) (Max) | 7 mOhm |
| Inductance | 18 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2 PC Pin, No Base, Vertical |
| Package Name | Vertical, No Base, 2 PC Pin |
| Package Pad Count | 2, 2 PC Pin |
| Pad Count | 2 PC Pin |
| Shielding | Unshielded |
| Size / Dimension Diameter | 1.1 in |
| Supplier Device Package - Orientation | Vertical |
| Supplier Device Package - Pad Count | 2 |
| Tolerance | 15 % |
| Type | Toroidal |
