Connectors, Interconnects

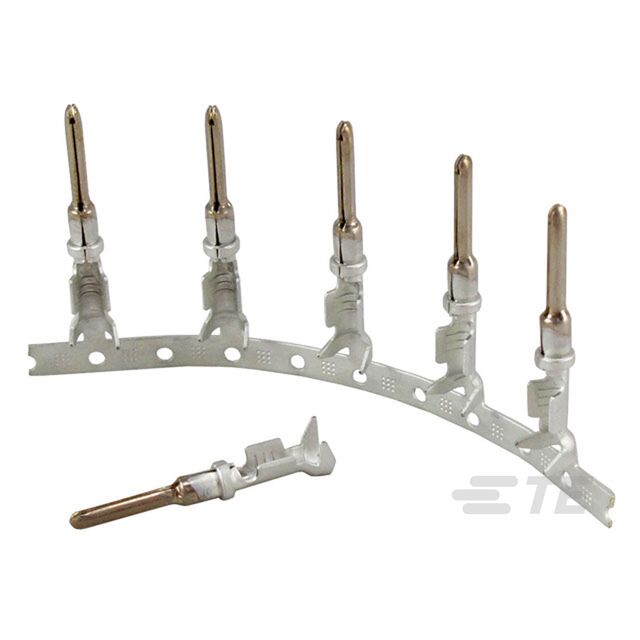

776349-3
ActiveTE Connectivity Raychem Cable Protection
CONN PIN 18-20AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 776349-3 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 2.54 µm |
| Contact Finish Thickness | 100 µin |
| Contact Termination | Crimp |
| Pin or Socket | Pin |
| Type | Stamped |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.61 | |
| 10 | $ 0.58 | |||
| 25 | $ 0.57 | |||
| 50 | $ 0.56 | |||
| 100 | $ 0.48 | |||
| 250 | $ 0.43 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.36 | |||
| Tape & Reel (TR) | 4000 | $ 0.35 | ||
| 8000 | $ 0.32 | |||
| 12000 | $ 0.30 | |||
Description
General part information
776349 Series
Pin Contact Tin 18-20 AWG Crimp Stamped
