Description
General part information

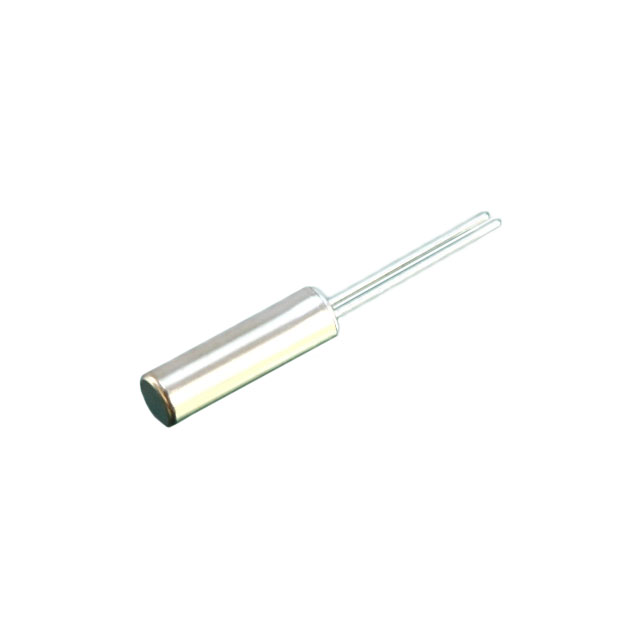

E1WCDA12-32.768K
32.768 kHz ±20ppm Crystal 12.5pF 35 kOhms Cylindrical Can, Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | E1WCDA12-32.768K |
|---|---|
| ESR (Equivalent Series Resistance) | 35 kOhm |
| Frequency | 0.032768 MHz |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) | 0.244 in |
| Load Capacitance | 12.5 pF |
| Mounting Type | Through Hole |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Package / Case | Cylindrical Can, Radial |
| Type | kHz Crystal (Tuning Fork) |
