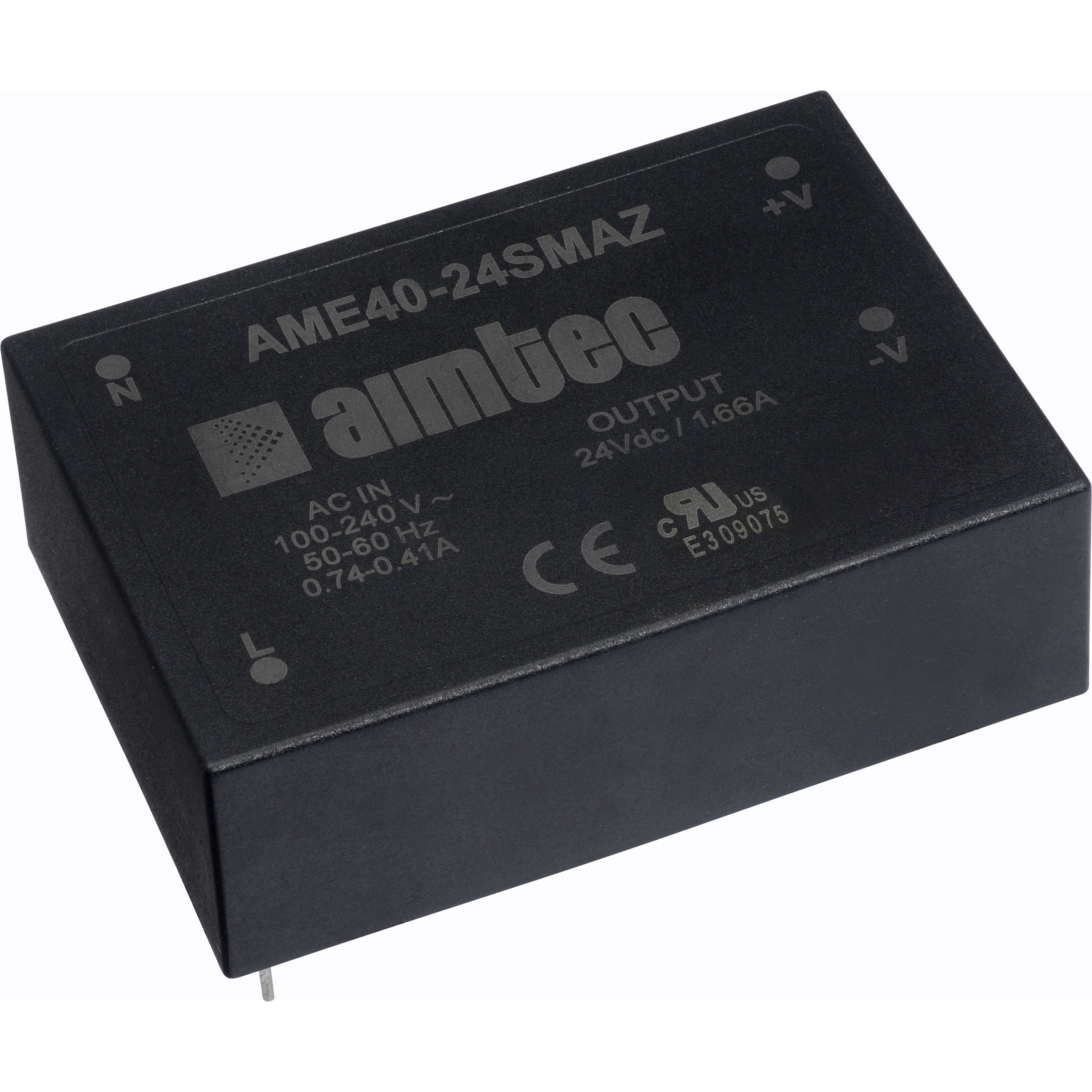

Specification	AME40-24SMAZ

Applications	ITE (Commercial), Medical
Approval Agency	UL, CB, CE, cURus, cULus
Current - Output (Max)	1.66 A
Efficiency	82 %
Features	Universal Input
Line Regulation	2 %
Load Regulation (Percent)	3 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package Leads	4 Leads
Package Name	5-DIP Module
Power (Watts)	40 W
Size / Dimension Height	1.18 in
Size / Dimension Length	3.56 in
Size / Dimension Width	2.48 in
Standard Number	60601-1
Type	Enclosed
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Input (DC) Maximum	370 V
Voltage - Input (DC) Minimum	130 V
Voltage - Output 1	24 V

AME40 Series

Part	Load Regulation (Percent)	Power (Watts)	Mounting Type	Number of Outputs	Efficiency	Current - Output (Max)	Type	Features	Voltage - Output 1	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Voltage - Input (DC) Minimum	Voltage - Input (AC) Maximum	Voltage - Input (AC) Minimum	Voltage - Input (DC) Maximum	Operating Temperature (Max)	Operating Temperature (Min)	Package Leads	Package Name	Applications	Line Regulation	Weight	Standard Number	Approval Agency	Package / Case	Current - Output (Max) Options	Current - Output 1	Voltage - Isolation
aimtec AME40-48SVZ	1 %	40 W	Through Hole	1	84 %	830 mA	Enclosed	Universal Input	48 V	2.5 in	3.5 in	0.98 in	100 V	264 V	85 VAC	370 V	70 °C	-40 °C	5 Leads	7-DIP Module	ITE (Commercial)	0.5 %	0.474 lb
aimtec AME40-5SMAZ	3 %	40 W	Through Hole	1	80 %	8 A	Enclosed	Universal Input	5 V	2.48 in	3.56 in	1.18 in	130 V	264 V	90 V	370 V	85 °C	-40 °C	4 Leads	5-DIP Module	ITE (Commercial) Medical	2 %	0.661 lb	60601-1	CB CE cULus cURus UL
aimtec AME40-48S277VZ	1 %	40 W	Through Hole	1	84 %	830 mA	Enclosed		48 V	2.5 in	3.5 in	0.98 in	100 V	305 VAC	85 VAC	430 V	70 °C	-40 °C			ITE (Commercial)	0.5 %	0.474 lb	62368-1		7-DIP Module
aimtec AME40-15SMAZ	3 %	40 W	Through Hole	1	84 %	2.66 A	Enclosed	Universal Input	15 V	2.48 in	3.56 in	1.18 in	130 V	264 V	90 V	370 V	85 °C	-40 °C	4 Leads	5-DIP Module	ITE (Commercial) Medical	2 %	0.661 lb	60601-1	CB CE cULus cURus UL
aimtec AME40-5DCJZ	1 %	40 W	Through Hole	2	82 %		Enclosed	Universal Input	5 V	2.5 in	3.5 in	0.98 in	100 V	264 V	85 VAC	370 V	70 °C	-40 °C	5 Leads	7-DIP Module	ITE (Commercial)	0.5 %			CE cURus		4A
aimtec AME40-24S277VZ	1 %	40 W	Through Hole	1	84 %	1.67 A	Enclosed		24 V	2.5 in	3.5 in	0.98 in	100 V	305 VAC	85 VAC	430 V	70 °C	-40 °C			ITE (Commercial)	0.5 %	0.474 lb	62368-1		7-DIP Module
aimtec AME40-12S277VZ	1 %	40 W	Through Hole	1	84 %	3.33 A	Enclosed		12 V	2.5 in	3.5 in	0.98 in	100 V	305 VAC	85 VAC	430 V	70 °C	-40 °C			ITE (Commercial)	0.5 %	0.474 lb	62368-1		7-DIP Module
aimtec AME40-3.3SVZ	1 %	26 W	Through Hole	1	78 %	8 A	Enclosed	Universal Input	3.3 V	2.5 in	3.5 in	0.98 in	100 V	264 V	85 VAC	370 V	70 °C	-40 °C	5 Leads	7-DIP Module	ITE (Commercial)	0.5 %	0.474 lb
aimtec AME40-15SVZ-ST		40 W	Chassis Mount	1	84 %		Enclosed	Universal Input	15 V	2.76 in	5.32 in	1.32 in	100 V	264 V	85 VAC	370 V	70 °C	-40 °C			ITE (Commercial)							2.66 A	4000 Vpk
aimtec AME40-15S277VZ	1 %	40 W	Through Hole	1	84 %	2.66 A	Enclosed		15 V	2.5 in	3.5 in	0.98 in	100 V	305 VAC	85 VAC	430 V	70 °C	-40 °C			ITE (Commercial)	0.5 %	0.474 lb	62368-1		7-DIP Module
