Description
General part information

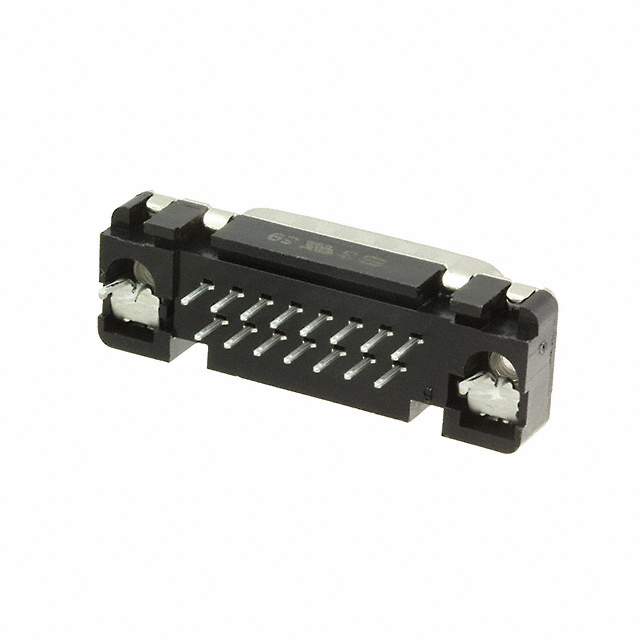

09652617711
15 Position D-Sub Plug, Male Pins Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 09652617711 |
|---|---|
| Connector Layout | A, DA |
| Connector Style | D-Sub |
| Connector Type | Male Pins, Plug |
| Contact Form | Stamped |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating | 6.5 A |
| Dielectric Material | Glass Filled, Polybutylene Terephthalate (PBT), Polyester |
| Features | Grounding Indents, Board Lock |
| Flange Feature | Shell (M3), Housing |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Shell Material, Finish | Steel |
| Shell Size | 2 |
| Termination | Solder |
