Description
General part information

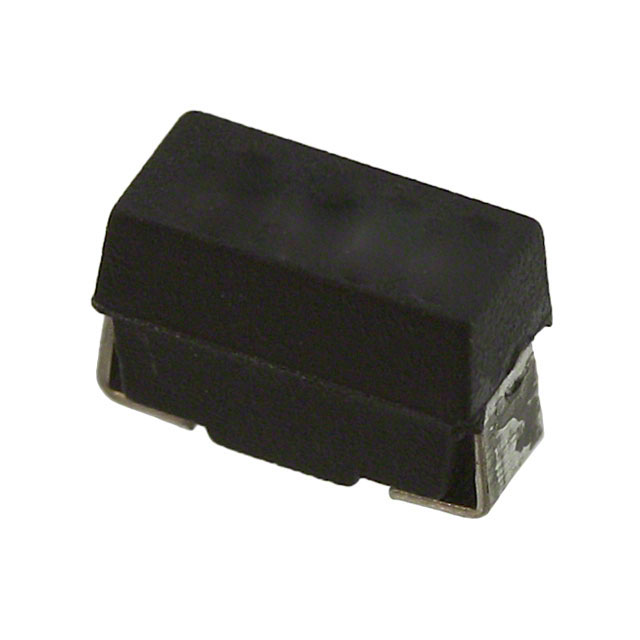

RW0S6BBR075FET
75 mOhms ±1% 0.6W Chip Resistor 2010 (5025 Metric) Current Sense Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | RW0S6BBR075FET |
|---|---|
| Composition | Wirewound |
| Features | Current Sense |
| Height - Seated (Max) | 0.14 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2010 (5025 Metric) |
| Package Name | 2010 |
| Power (Watts) | 600 mW |
| Resistance | 75 mOhms |
| Size / Dimension Length | 0.202 in |
| Size / Dimension Width | 0.1 in |
| Temperature Coefficient | 90 ppm/°C |
| Tolerance | 1 % |
