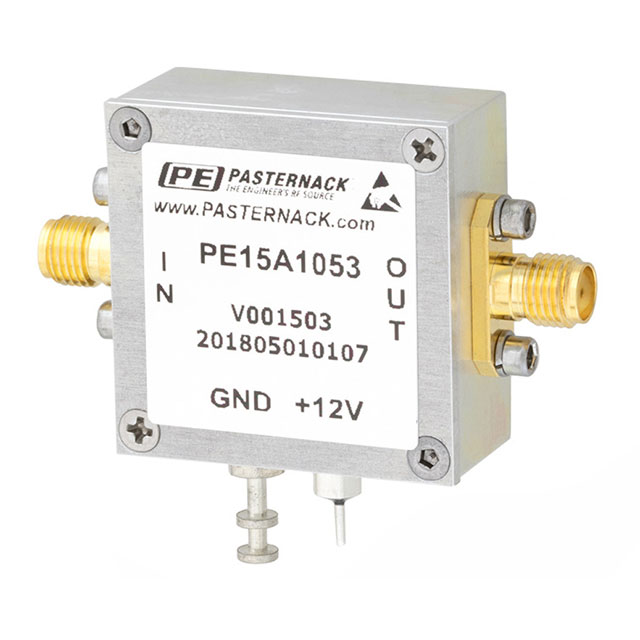

PE15A1053
ActivePasternack
IC RF AMP GPS 50MHZ-1.2GHZ MOD
PE15A1053
ActivePasternack
IC RF AMP GPS 50MHZ-1.2GHZ MOD
Description
General part information
PE15A1053
RF Amplifier IC General Purpose 50MHz ~ 1.2GHz Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PE15A1053 |
|---|---|
| Current - Supply | 88 mA |
| Frequency (Max) | 1.2 GHz |
| Frequency (Min) | 50 MHz |
| Gain | 47 dB |
| Noise Figure | 2.2 dB |
| P1dB | 13 dBm |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| RF Type | General Purpose |
| Test Frequency (Maximum) | 1.2 GHz |
| Test Frequency (Minimum) | 50 MHz |
| Voltage - Supply (Maximum) | 15 V |
| Voltage - Supply (Minimum) | 11 VDC |
