1456666
ActivePhoenix Contact

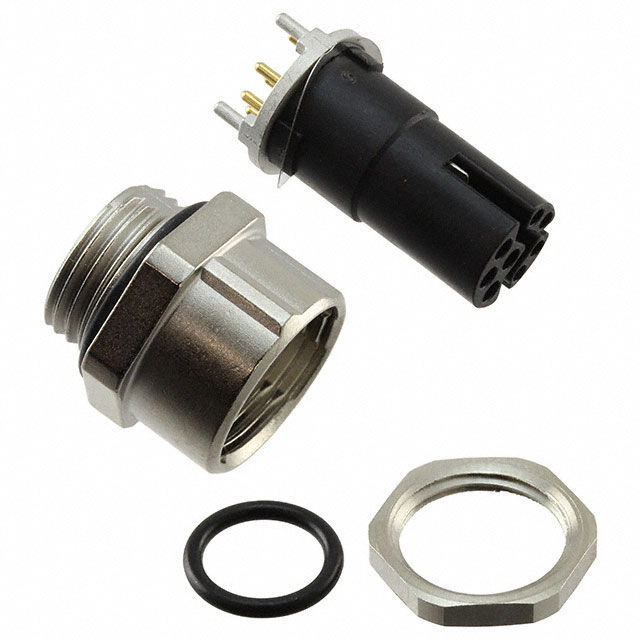

CONN RCPT FMALE 8POS GOLD SOLDER
1456666
ActivePhoenix Contact
CONN RCPT FMALE 8POS GOLD SOLDER
Description
General part information
1456666
8 (4 Data + 4 Power) Position Circular Connector Receptacle, Female Sockets Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 1456666 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating Options | 0.5A, 6A |
| Fastening Type | Push-Twist |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Polyphthalamide, PPA |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Rear Side Nut, Bulkhead |
| Mounting Type | Panel Mount, Through Hole |
| Number of Positions (Normal) | 4 |
| Number of Positions (Power) | 4 |
| Number of Positions (Total) | 8 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Y |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M12-8 |
| Termination | Solder |
| Voltage Rating | 30 V |
