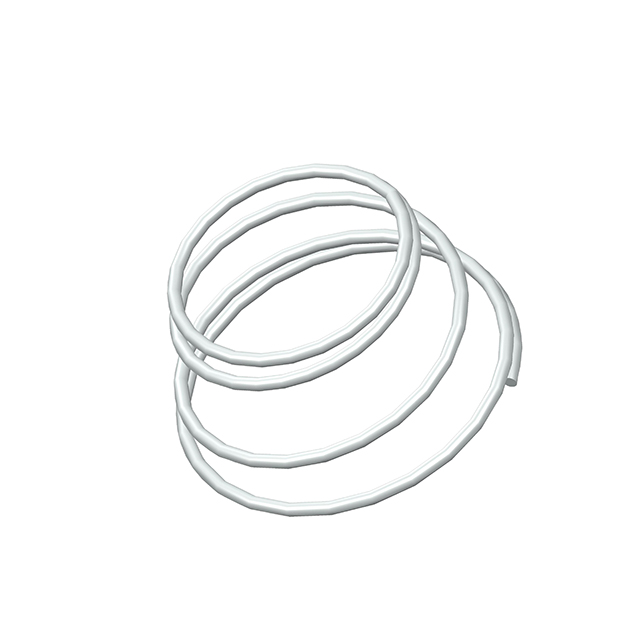

TA-2076CS
ActiveCentury Spring Corp
LO= 0.968, SO= 0.687, W= 0.038
TA-2076CS
ActiveCentury Spring Corp
LO= 0.968, SO= 0.687, W= 0.038
Description
General part information
TA-2076CS
LO= 0.968, SO= 0.687, W= 0.038
Technical Specifications
Parameters and characteristics for this part
| Specification | TA-2076CS |
|---|---|
| Diameter - Inside | 0.61 in |
| Diameter - Large Outside | 0.968 in |
| Diameter - Small Outside | 0.687 in |
| End Style | Closed |
| Finish | None |
| Free Length | 0.56 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 33 lbs/in |
| Type | Tapered |
| Wire Diameter | 0.038 in |
