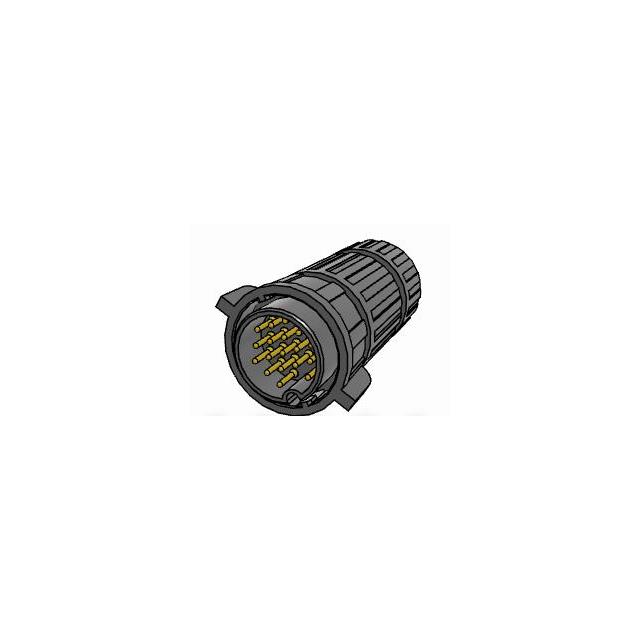

36PB-3118PG-5L
ActiveiCONN Systems LLC
18P M PLUG, FIELD INSTALLABLE, S
36PB-3118PG-5L
ActiveiCONN Systems LLC
18P M PLUG, FIELD INSTALLABLE, S
Description
General part information
36PB-3118PG-5L
18 Position Circular Connector Plug, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 36PB-3118PG-5L |
|---|---|
| Color | Black |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Gold |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP68, IP67 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 18 |
| Operating Temperature (Max) | 105 °C |
| Orientation | N (Normal) |
| Primary Material | Plastic |
| Shell Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating | 300 VAC/DC |
