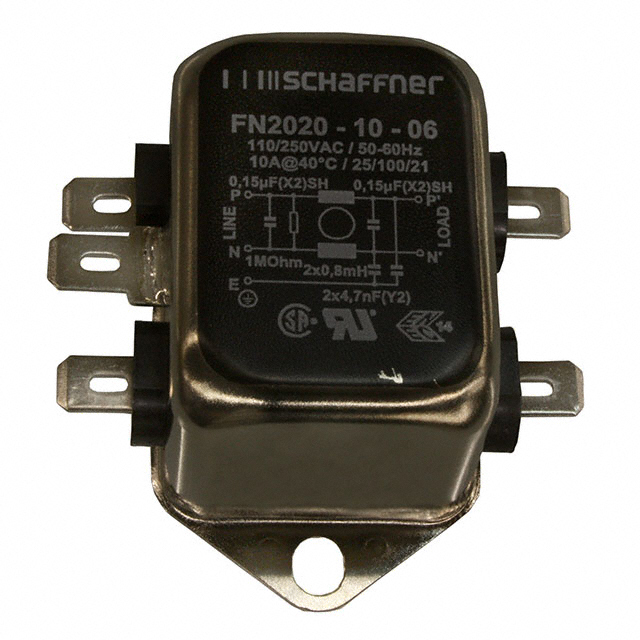

LINE FILTER 250VAC 10A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN2020-10-06

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 250VAC 10A CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN2020-10-06

Applications	General Purpose
Approval Agency	CSA, ENEC, UR
Configuration	Single Stage
Current	10 A
Filter Type	Single Phase
Frequency - Operating	400 Hz
Inductance	800 µH
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Quick Connect
Voltage - Rated AC	250 V

Schaffner FN2020 Series

Part	Applications	Configuration	Current	Operating Temperature [custom]	Filter Type	Frequency - Operating	Termination Style	Voltage - Rated AC	Mounting Type	Inductance	Approval Agency
TE Connectivity Raychem Cable Protection FN2020A-20-06	Safety	Single Stage	20 A	-25 °C 100 °C	Single Phase	400 Hz	Quick Connect	250 V	Chassis Mount	600 µH	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2020-12-06	General Purpose	Single Stage	12 A	-25 °C 100 °C	Single Phase	400 Hz	Quick Connect	250 V	Chassis Mount	700 µH	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2020-16-06	General Purpose	Single Stage	16 A	-25 °C 100 °C	Single Phase	400 Hz	Quick Connect	250 V	Chassis Mount	650 µH	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2020-16-08	General Purpose	Single Stage	16 A	-25 °C 100 °C	Single Phase	400 Hz	Threaded Post (M4)	250 V	Chassis Mount	650 µH	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2020B-1-06	General Purpose	Single Stage	1 A	-25 °C 100 °C	Single Phase	400 Hz	Quick Connect	250 V	Chassis Mount	12 mH	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2020B-20-06	General Purpose	Single Stage	20 A	-25 °C 100 °C	Single Phase	400 Hz	Quick Connect	250 V	Chassis Mount	600 µH	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2020A-10-06	Safety	Single Stage	10 A	-25 °C 100 °C	Single Phase	400 Hz	Quick Connect	250 V	Chassis Mount	800 µH	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2020A-30-08	Safety	Single Stage	30 A	-25 °C 100 °C	Single Phase	400 Hz	Threaded Post (M4)	250 V	Chassis Mount	670 µH	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2020B-10-06	General Purpose	Single Stage	10 A	-25 °C 100 °C	Single Phase	400 Hz	Quick Connect	250 V	Chassis Mount	800 µH	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2020B-16-06	General Purpose	Single Stage	16 A	-25 °C 100 °C	Single Phase	400 Hz	Quick Connect	250 V	Chassis Mount	650 µH	CSA ENEC UR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 15.51
		10	$ 15.03
		25	$ 14.54
		60	$ 14.06
		120	$ 12.63

Description

General part information

Schaffner FN2020 Series

Single Phase EMC/EMI Line Filter 10 A 250V DC ~ 400Hz Single Stage Quick Connect
