1458800
ActivePhoenix Contact
CIRC CBL 5POS PLUG TO WIRE 0.66'
1458800
ActivePhoenix Contact
CIRC CBL 5POS PLUG TO WIRE 0.66'
Description
General part information
1458800

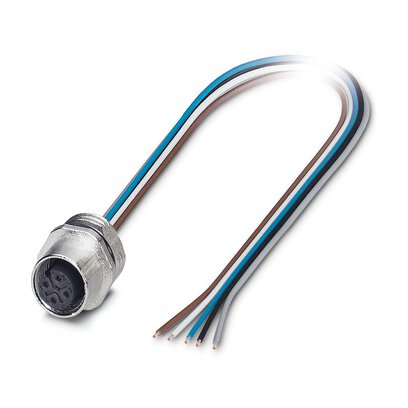

Circular Cable Assembly Unshielded 0.66' (200.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1458800 |
|---|---|
| 1st Connector Gender | Female Sockets |
| 1st Connector Mounting Type | Panel Mount |
| 1st Connector Number of Positions | 5 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | A |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Plug |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Thermoplastic Elastomer (TPE) |
| Cable Type | Individual |
| Color | Multiple |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 0.66 ft |
| Shielding | Unshielded |
| Usage | Industrial Environments |
