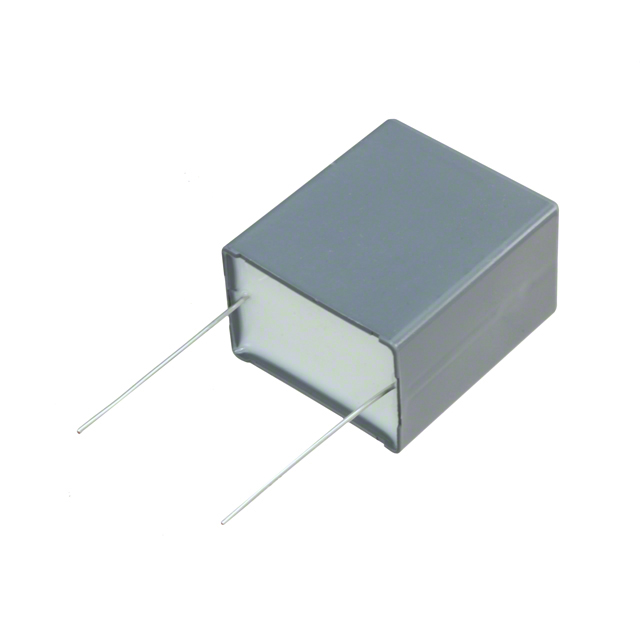

Specification	F863DS105K310Z

Applications	EMI, Automotive, RFI Suppression
Capacitance	1 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max)	0.791 in
Lead Spacing	0.886 in
Mounting Type	Through Hole
Operating Temperature (Max)	110 °C
Operating Temperature (Min)	-40 °C
Package / Case	Radial
Ratings	X2, AEC-Q200
Size / Dimension Length	1.043 in
Size / Dimension Width	0.433 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	310 V
Voltage Rating - DC	630 V

F863DS Series

Part	Height - Seated (Max)	Tolerance	Dielectric Material	Package / Case	Lead Spacing	Voltage Rating - AC	Capacitance	Ratings	Termination	Size / Dimension Length	Size / Dimension Width	Mounting Type	Voltage Rating - DC	Operating Temperature (Min)	Operating Temperature (Max)	Applications
KEMET F863RT106K310Z	1.776 in	10 %	Metallized Polypropylene (PP)	Radial	1.476 in	310 V	10 µF	AEC-Q200 X2	PC Pins	1.634 in	1.181 in	Through Hole	630 V	-40 °C	110 °C	Automotive EMI RFI Suppression
KEMET F863DE474K310ALW0L	0.634 in	10 %	Metallized Polypropylene (PP)	Radial	0.886 in	310 V	0.47 µF	AEC-Q200 X2	PC Pins	1.043 in	0.276 in	Through Hole	630 V	-40 °C	110 °C	Automotive EMI RFI Suppression
KEMET F863DE474K310R	0.634 in	10 %	Metallized Polypropylene (PP)	Radial	0.886 in	310 V	0.47 µF	AEC-Q200 X2	PC Pins	1.043 in	0.276 in	Through Hole	630 V	-40 °C	110 °C	Automotive EMI RFI Suppression
KEMET F863BW474K310Z	0.752 in	10 %	Metallized Polypropylene (PP)	Radial	0.591 in	310 V	0.47 µF	AEC-Q200 X2	PC Pins	0.709 in	0.433 in	Through Hole	630 V	-40 °C	110 °C	Automotive EMI RFI Suppression
KEMET F863DS105K310R	0.791 in	10 %	Metallized Polypropylene (PP)	Radial	0.886 in	310 V	1 µF	AEC-Q200 X2	PC Pins	1.043 in	0.433 in	Through Hole	630 V	-40 °C	110 °C	Automotive EMI RFI Suppression
