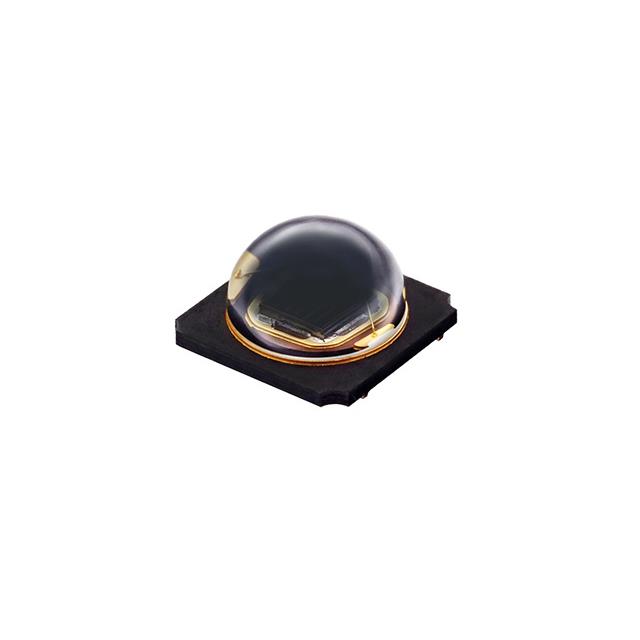

VMGN1108MS-TR
ActiveStanley Electric Co
AUTOMOTIVE INFRARED (IR) EMITTER
VMGN1108MS-TR
ActiveStanley Electric Co
AUTOMOTIVE INFRARED (IR) EMITTER
Description
General part information
VMGN1108MS-TR
Infrared (IR) Emitter 855nm (835nm ~ 875nm) 1.8V 1A 210mW/sr @ 1A (Typ) 120° 3-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | VMGN1108MS-TR |
|---|---|
| Current - DC Forward (If) (Max) | 1 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Top View |
| Package / Case | No Lead, 3-SMD |
| Qualification | AEC-Q100 |
| Radiant Intensity (Ie) Min (Typical) | 210 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 1.8 V |
| Wavelength | 855 nm |
| Wavelength (Maximum) | 875 nm |
| Wavelength (Minimum) | 835 nm |
| Wavelength (Nominal) | 855 nm |
