2636-1111/020-000
ActiveWAGO Corporation

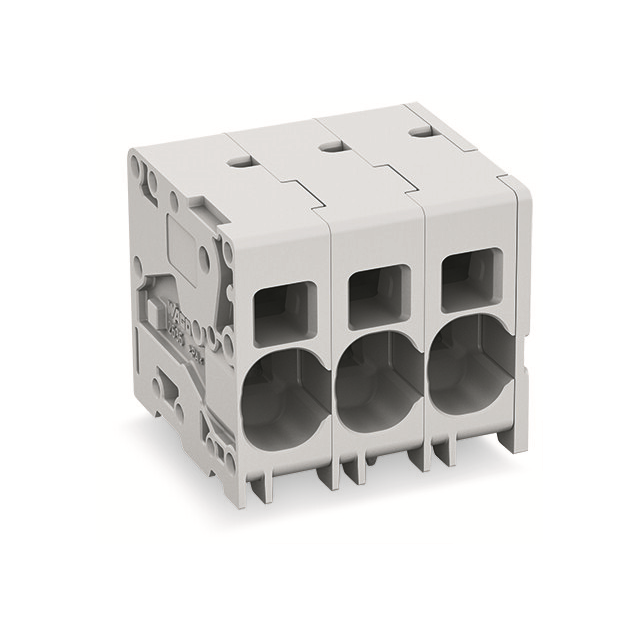

PCB TERMINAL BLOCK; 16 MM; PIN S
2636-1111/020-000
ActiveWAGO Corporation
PCB TERMINAL BLOCK; 16 MM; PIN S
Description
General part information
2636-1111/020-000
11 Position Wire to Board Terminal Block Horizontal with Board 0.394" (10.00mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 2636-1111/020-000 |
|---|---|
| Clamp Material | Steel |
| Clamp Plating | Nickel Plated |
| Color | Gray |
| Contact Material | Electrolytic Copper |
| Current | 66 A |
| Housing Material | Nylon 6/6, Polyamide, PA66 |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -60 °C |
| Pitch | 0.394 in |
| Plating | Tin Plated |
| Positions Per Level | 11 |
| Voltage | 600 V |
| Wire Gauge (AWG) (Max) | 18 AWG |
| Wire Gauge (AWG) (Min) | 4 AWG |
| Wire Termination | Leg Spring, Screwless, Push-In Spring |
