3-828102-1
ActiveTE Connectivity AMP Connectors

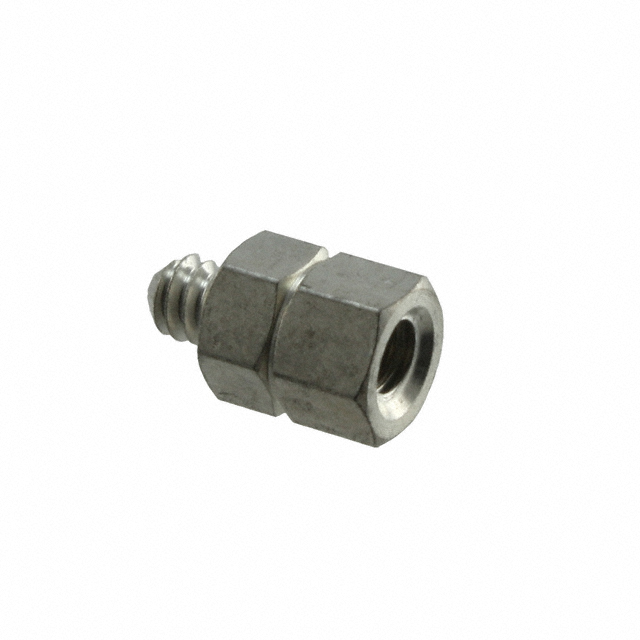

CONN D-SUB FEMALE SCREW LOCK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-828102-1
ActiveTE Connectivity AMP Connectors
CONN D-SUB FEMALE SCREW LOCK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-828102-1 | 828102 Series |
|---|---|---|
| Accessory Type | Jackscrew Socket | Jackscrew Socket |
| For Use With/Related Products | D-Sub Front Panel Mount Connectors | D-Sub Front Panel Mount Connectors |
| Length - Below Head | 3 mm | 3 - 5 mm |
| Length - Below Head | 0.118 in | 0.118 - 0.197 in |
| Length - Threaded Portion Below Head [x] | 0.118 " | 0.118 - 0.197 in |
| Length - Threaded Portion Below Head [x] | 3 mm | 3 - 5 mm |
| Thread Size | 4-40 Screw, 4-40 Socket | 4-40 Screw, 4-40 Socket |
828102 Series
CONN D-SUB FEMALE SCREW LOCK
| Part | Thread Size | Length - Threaded Portion Below Head [x] | Length - Threaded Portion Below Head [x] | For Use With/Related Products | Length - Below Head | Length - Below Head | Accessory Type |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 828102-1 | 4-40 Screw, 4-40 Socket | 5 mm | 0.197 in | D-Sub Front Panel Mount Connectors | 5 mm | 0.197 in | Jackscrew Socket |
TE Connectivity AMP Connectors 3-828102-1 | 4-40 Screw, 4-40 Socket | 3 mm | 0.118 " | D-Sub Front Panel Mount Connectors | 3 mm | 0.118 in | Jackscrew Socket |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.61 | |
| 10 | $ 1.47 | |||
| 100 | $ 1.31 | |||
| 2500 | $ 0.97 | |||
| 5000 | $ 0.94 | |||
| 10000 | $ 0.90 | |||
Description
General part information
828102 Series
Jackscrew Socket For D-Sub Front Panel Mount Connectors
