SMK-R008-5.0
ActiveIsabellenhuette USA
RESISTOR - ISA-PLAN SHUNT, 0.008
SMK-R008-5.0
ActiveIsabellenhuette USA
RESISTOR - ISA-PLAN SHUNT, 0.008
Description
General part information

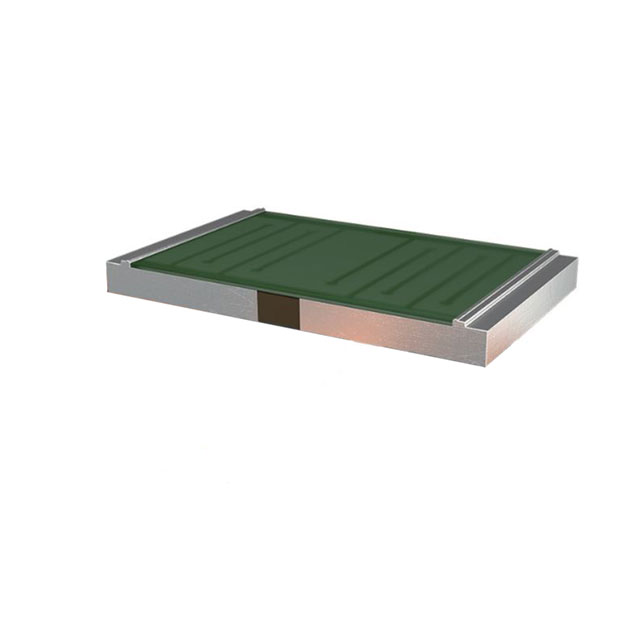

SMK-R008-5.0
8 mOhms ±5% 1W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Technical Specifications
Parameters and characteristics for this part
| Specification | SMK-R008-5.0 |
|---|---|
| Features | Moisture Resistant, Automotive AEC-Q200, Current Sense, Pulse Withstanding |
| Height - Seated (Max) | 0.028 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | 1206 (3216 Metric) |
| Package Name | 1206 |
| Power (Watts) | 1 W |
| Resistance | 8 mOhms |
| Size / Dimension Length | 0.12 in |
| Size / Dimension Width | 0.06 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
