CHM-9-30-80-36-XD22-F4-3

Active

Luminus Devices Inc.

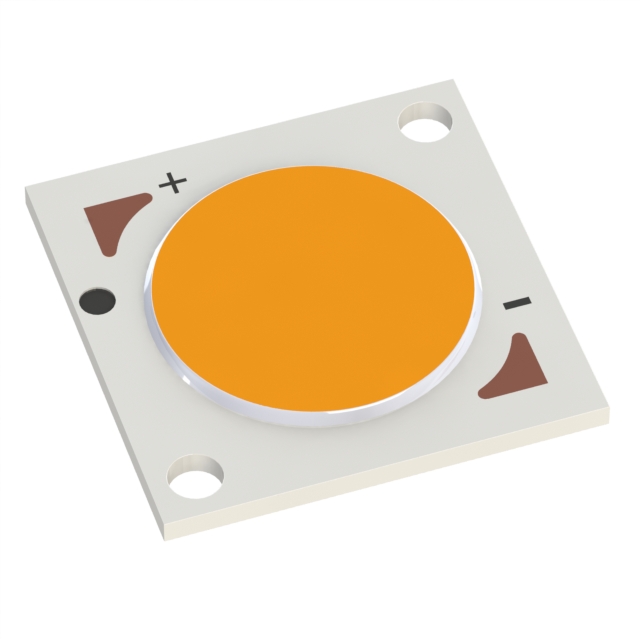

LED COB SENSUS GEN3 WH SQ 3000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CHM-9-30-80-36-XD22-F4-3

Active

Luminus Devices Inc.

LED COB SENSUS GEN3 WH SQ 3000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1800	$ 2.65

Description

General part information

CHM-9-30 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Sensus™ Gen3 White, Warm Square

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CHM-9-30-80-36-XD22-F4-3	CHM-9-30 Series

	-	-
CCT (K)	3000 K	3000 K
Color	White, Warm	White, Warm
Configuration	Square	Square
CRI (Color Rendering Index)	80	80 - 95
Current - Max [Max]	995 mA	1.05 - 995 A
Current - Test	360 mA	360 - 720 mA
Features	-	With Connector
Height [z]	1.37 mm	1.37 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	9.6 mm	8.9 - 9.6 mm
Lumens/Watt @ Current - Test	139 lm/W	70 - 139 lm/W
Luminous Flux @ Current/Temperature	1690 lm	1110 - 2205 lm
Size / Dimension [x]	15 mm	15 - 19 mm
Size / Dimension [y]	15 mm	15 - 19 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	34 V	18 - 36.5 V

CHM-9-30 Series

LED COB CHM9 WARM WHT SQU 3000K

Part	Color	Configuration	Current - Max [Max]	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Light Emitting Surface (LES) [diameter]	Lens Type	Type	Size / Dimension [y]	Size / Dimension [x]	Height [z]	CCT (K)	Viewing Angle	Current - Test	Temperature - Test	Features
Luminus Devices Inc. CHM-9-30-95-36-XH00-F2-3	Warm, White	Square	1.05 A	95	70 lm/W	1825 lm	36 V	9 mm	Flat	Chip On Board (COB)	19 mm	19 mm	1.37 mm	3000 K	120 °	720 mA	85 °C
Luminus Devices Inc. CHM-9-30-90-36-XD22-F4-3	Warm, White	Square	995 mA	90	117 lm/W	1425 lm	34 V	9.6 mm	Flat	Chip On Board (COB)	15 mm	15 mm	1.37 mm	3000 K	120 °	360 mA	85 °C
Luminus Devices Inc. CHM-9-30-80-36-XH00-F1-3	Warm, White	Square	1.05 A	80			36 V	9 mm	Flat	Chip On Board (COB)	19 mm	19 mm	1.37 mm	3000 K	120 °	720 mA	85 °C
Luminus Devices Inc. CHM-9-30-90-36-AC00-F2-3	Warm, White	Square	720 mA	90	93 lm/W	1170 lm	35 V	9 mm	Flat	Chip On Board (COB)			1.37 mm	3000 K	120 °	360 mA	85 °C
Luminus Devices Inc. CHM-9-30-80-36-AC02-F2-2	Warm, White	Square	720 mA	80	110 lm/W	1380 lm	35 V	9 mm	Flat	Chip On Board (COB)			1.37 mm	3000 K	120 °	360 mA	85 °C
Luminus Devices Inc. CHM-9-30-90-36-XH24-F3-3	Warm, White	Square	1.08 A	90	84 lm/W	2205 lm	36.5 V	8.9 mm	Flat	Chip On Board (COB)	19 mm	19 mm	1.37 mm	3000 K	120 °	720 mA	85 °C	With Connector
Luminus Devices Inc. CHM-9-30-80-36-AC12-F3-3	Warm, White	Square	720 mA	80	123 lm/W	1530 lm	34.5 V	9 mm	Flat	Chip On Board (COB)			1.37 mm	3000 K	120 °	360 mA	85 °C
Luminus Devices Inc. CHM-9-30-90-36-AC00-F2-2	Warm, White	Square	720 mA	90	93 lm/W	1170 lm	35 V	9 mm	Flat	Chip On Board (COB)			1.37 mm	3000 K	120 °	360 mA	85 °C
Luminus Devices Inc. CHM-9-30-80-36-AC10-F3-3	Warm, White	Square	720 mA	80	121 lm/W	1550 lm	35.5 V	9 mm	Flat	Chip On Board (COB)			1.37 mm	3000 K	120 °	360 mA	85 °C
Luminus Devices Inc. CHM-9-30-95-18-AC10-F3-3	Warm, White	Square	545 mA	95			18 V	9 mm	Flat	Chip On Board (COB)			1.37 mm	3000 K	120 °	360 mA	85 °C
