VTA7080518C400DP

Active

KYOCERA AVX

TVS, HI-TEMP. 175 C, 0805 EIA, 1

Search across all available documentation for this part.

Active

KYOCERA AVX

TVS, HI-TEMP. 175 C, 0805 EIA, 1

Technical Specifications

Parameters and characteristics commom to parts in this series

TVS, HI-TEMP. 175 C, 0805 EIA, 1

Part	Number of Circuits	Capacitance @ Frequency	Package / Case	Qualification	Current - Surge	Mounting Type	Varistor Voltage (Typ)	Energy	Maximum DC Volts [Max]	Varistor Voltage (Min) [Min]	Maximum AC Volts [Max]	Grade	Varistor Voltage (Max) [Max]
KYOCERA AVX VTA7080518C400DP	1	450 pF	0805	AEC-Q200	120 A	Surface Mount, MLCV	25.5 V	0.3 J	18 V	22.95 V	13 V	Automotive
KYOCERA AVX VTA7080531C650RP	1	275 pF	0805	AEC-Q200	80 A	Surface Mount, MLCV	39 V	0.3 J	31 V	35.1 V	25 V	Automotive	42.9 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

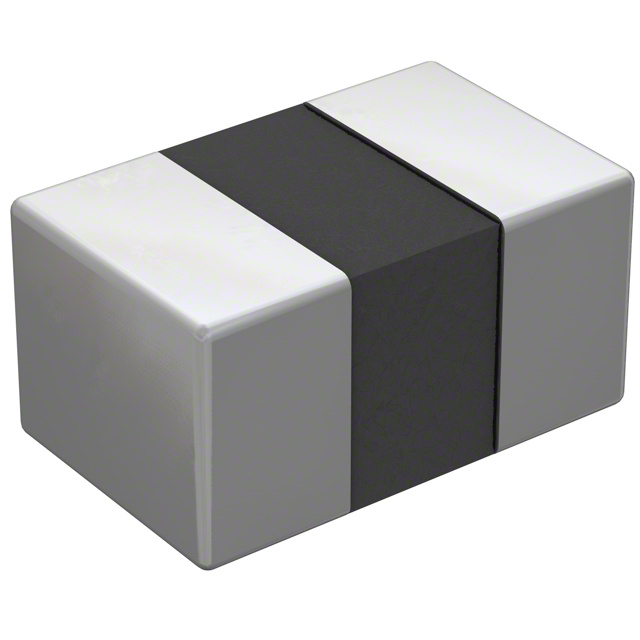

25.5 V 120 A Varistor 1 Circuit Surface Mount, MLCV 0805 (2012 Metric)
