MSC125V130
ActiveNTE Electronics, Inc
CAP ALUM 124UF 125V QC CHAS MT
MSC125V130
ActiveNTE Electronics, Inc
CAP ALUM 124UF 125V QC CHAS MT
Description
General part information
MSC125V130

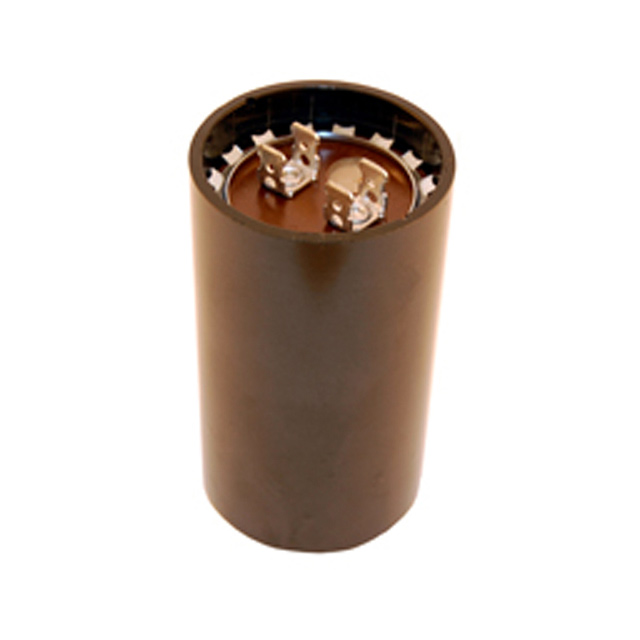

124 µF 125 V Aluminum Electrolytic Capacitors Radial, Can - QC Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | MSC125V130 |
|---|---|
| Applications | Motor Start |
| Capacitance | 124 µF |
| Height - Seated (Max) | 2.75 in |
| Lead Spacing | 0.5 in |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Can - QC Terminals |
| Size / Dimension Diameter | 1.438 in |
| Voltage - Rated | 125 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
