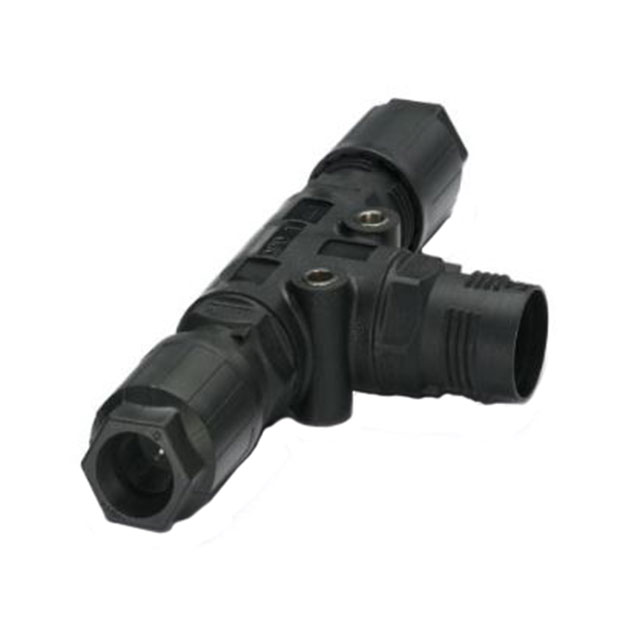

Specification	1405403

Cable Opening (Max)	0.433 in
Cable Opening (Min)	0.236 in
Color	Black
Connector Type	T-Distributor
Contact Finish - Mating	Silver
Contact Material	Copper
Current Rating	20 A
Fastening Type	Threaded
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP69K, IP68
Insert Material	PA, Nylon, Polyamide
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	5
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Position Types	PE
Primary Material	Plastic
Shell Material	Nylon, Polyamide (PA)
Termination	IDC
