1553190
ActivePhoenix Contact

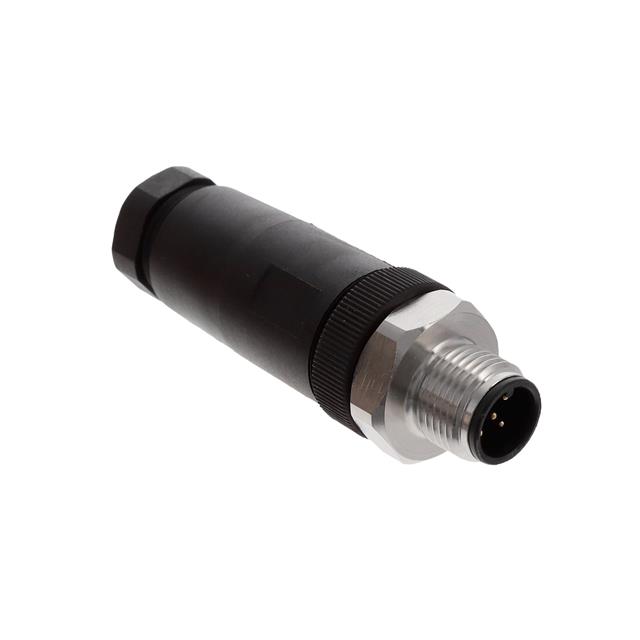

SENSOR CONNECTOR, M12, PLUG, 5POS
1553190
ActivePhoenix Contact
SENSOR CONNECTOR, M12, PLUG, 5POS
Description
General part information
1553190
5 Position Circular Connector Plug, Male Pins Screw
Technical Specifications
Parameters and characteristics for this part
| Specification | 1553190 |
|---|---|
| Backshell Material, Plating | Nylon, Polyamide (PA) |
| Cable Opening (Max) | 0.315 in |
| Cable Opening (Min) | 0.236 in |
| Color | Black, Silver |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating | 4 A |
| Fastening Type | Threaded |
| Features | Backshell |
| Ingress Protection Description | Water Resistant, Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP69K, IP65, IP67 |
| Insert Material | PA, Nylon, Polyamide |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 5 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Material | Stainless Steel |
| Shell Size - Insert | M12-5 |
| Termination | Screw |
| Voltage Rating (AC) | 48 VAC |
| Voltage Rating (DC) | 60 VDC |
