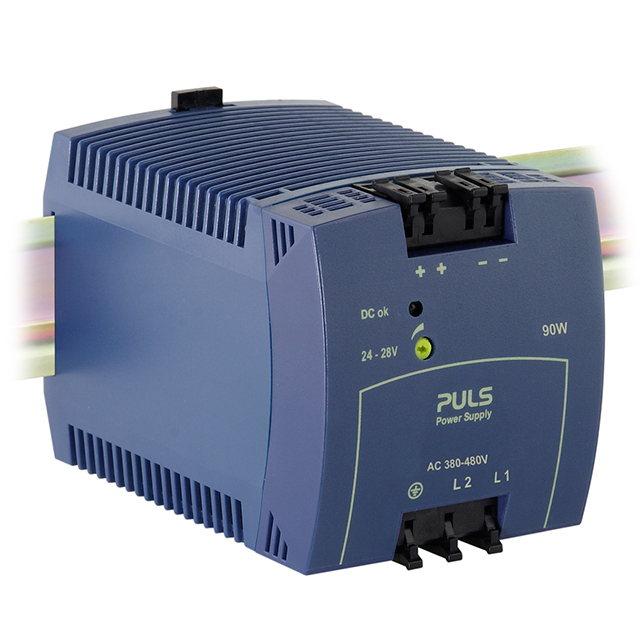

ML90.200

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 90W

Search across all available documentation for this part.

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 90W

Technical Specifications

Parameters and characteristics for this part

AC/DC DIN RAIL SUPPLY 24V 90W

Part	Current - Output (Max) [Max]	Input Type	Power (Watts)	Number of Outputs	Features	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Standard Number	Standard Number	Applications	Efficiency	AC Voltage - Input [Min]	AC Voltage - Input [Max]
PULS, LP ML90.200	3.75 A	AC	90 W	1	Adjustable Output, IP20	24 V	-10 °C	70 °C	75 mm	2.87 "	73 mm	4.06 "	2.95 "	103 mm	ABS, DNV GL, EAC, IEC, NEC, UL	508, 60950.1, 61010.201	Class 2	ITE (Commercial)	89.9 %	380 VAC	480 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 291.60

General part information

AC/DC DIN RAIL SUPPLY 24V 90W

Technical documentation and resources
