VERTICAL TOROIDAL INDUCTOR
059AT1503V
ActiveGowanda Electronics
VERTICAL TOROIDAL INDUCTOR
Description
General part information
059AT1503V

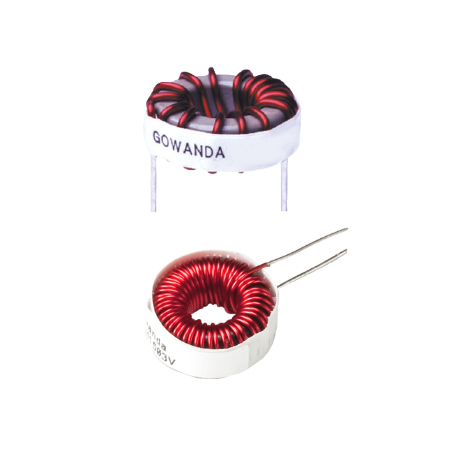

150 µH Unshielded Toroidal Inductor 4.5 A 52mOhm Max Radial, Vertical Cylinder (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | 059AT1503V |
|---|---|
| Current - Saturation (Isat) | 6 A |
| Current Rating | 4.5 A |
| DC Resistance (DCR) (Max) | 52 mOhm |
| Frequency - Self Resonant | 1 MHz |
| Inductance | 150 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Vertical Cylinder (Open), Radial |
| Package Name | Radial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 1.1 in |
| Size / Dimension Width | 0.475 in |
| Tolerance | 10 % |
| Type | Toroidal |
