C0816X7R1C473K
ObsoleteTDK Corporation
CAP CER 0.047UF 16V X7R 0306
C0816X7R1C473K
ObsoleteTDK Corporation
CAP CER 0.047UF 16V X7R 0306
Description
General part information
C0816X7R1C473K

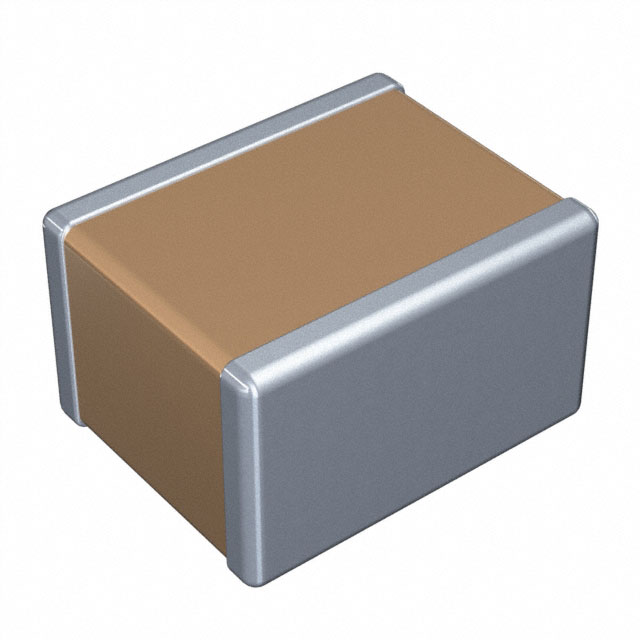

0.047 µF ±10% 16V Ceramic Capacitor X7R 0306 (0816 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | C0816X7R1C473K |
|---|---|
| Applications | Bypass, Decoupling |
| Capacitance | 47 nF |
| Features | Low ESL (Reverse Geometry) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0306 (0816 Metric) |
| Size / Dimension Length | 0.031 in |
| Size / Dimension Width | 0.063 in |
| Temperature Coefficient | X7R |
| Thickness (Max) | 0.024 in |
| Tolerance | 10 % |
| Voltage - Rated | 16 V |
