Specification	J7KNA-AR-31 48

Coil Voltage	48 V
Contact Form	3, B, A, Form, PST-3NO/1NC, 1
Contact Rating (Current)	10 A
Features	Auxiliary Contacts
Mounting Type	Chassis Mount, DIN Rail
Must Operate Voltage	40.8 VDC
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-40 °C
Pin Count	4
Switching Voltage AC (Max)	690 VAC
Termination Style	Screw Terminal

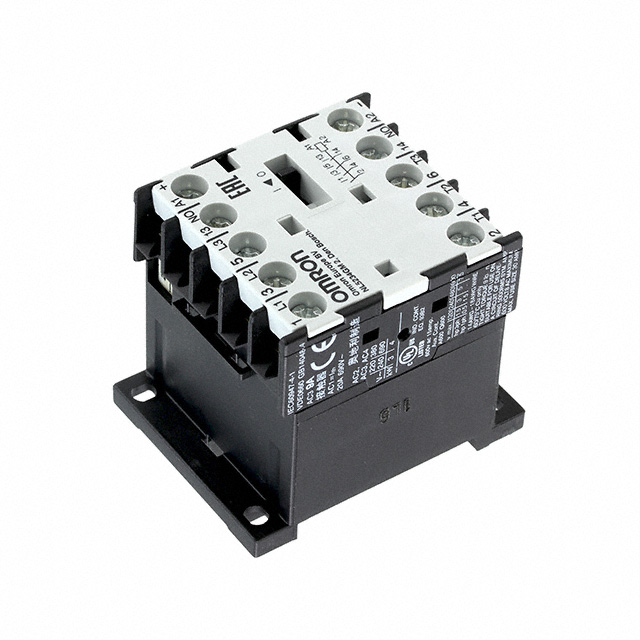

J7KNA Series

Part	Operate Time	Coil Power	Release Time	Coil Voltage	Operating Temperature (Max)	Operating Temperature (Min)	Termination Style	Pin Count	Contact Form	Switching Voltage AC (Max)	Contact Rating (Current)	Mounting Type	Features	Coil Resistance	Coil Current
Omron Automation and Safety J7KNA-AR-22 24	25 ms	5 W	25 ms	24 VDC	60 °C	-40 °C	Screw Terminal	4	2 A B Form PST-2NO/2NC	600 VAC	10 A	Chassis Mount DIN Rail
Omron Automation and Safety J7KNA-AR-22 125VS	19 ms	2.5 W	25 ms	125 VDC	60 °C	-40 °C	Screw Terminal	4	2 A B Form PST-2NO/2NC	600 VAC	10 A	Chassis Mount DIN Rail	Diode
Omron Automation and Safety J7KNA-AR-40 24	25 ms	5 W	25 ms	24 VDC	60 °C	-40 °C	Screw Terminal	4	4 Form A PST-NO	600 VAC	10 A	Chassis Mount DIN Rail
Omron Automation and Safety J7KNA-AR-22 24D	19 ms	2.5 W	25 ms	24 VDC	60 °C	-40 °C	Screw Terminal	4	2 A B Form PST-2NO/2NC	400 VAC	10 A	Chassis Mount DIN Rail		230 Ohms	104.2 mA
Omron Automation and Safety J7KNA-09-10 24				24 VDC	60 °C	-40 °C	Screw Terminal	3 pins	3 A Form PST-NO	400 VAC	9 A	Chassis Mount DIN Rail
Omron Automation and Safety J7KNA-AR-31 24VS	19 ms	2.5 W	25 ms	24 VDC	60 °C	-40 °C	Screw Terminal	4	1 3 A B Form PST-3NO/1NC	600 VAC	10 A	Chassis Mount DIN Rail	Diode
Omron Automation and Safety J7KNA-AR-31 230	25 ms	5 W	25 ms	230 VDC	60 °C	-40 °C	Screw Terminal	4	1 3 A B Form PST-3NO/1NC	600 VAC	10 A	Chassis Mount DIN Rail
Omron Automation and Safety J7KNA-AR-22 125D	19 ms	2.5 W	25 ms	125 VDC	60 °C	-40 °C	Screw Terminal	4	2 A B Form PST-2NO/2NC	600 VAC	10 A	Chassis Mount DIN Rail
Omron Automation and Safety J7KNA-AR-31 110	25 ms	5 W	25 ms	110 V	60 °C	-40 °C	Screw Terminal	4	1 3 A B Form PST-3NO/1NC	600 VAC	10 A	Chassis Mount DIN Rail
Omron Automation and Safety J7KNA-09-10 230				230 VDC	60 °C	-40 °C	Screw Terminal	3 pins	3 A Form PST-NO	400 VAC	9 A	Chassis Mount DIN Rail

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

J7KNA-AR-31 48 | Datasheet
