AP22800HB-7
ActiveDiodes Inc

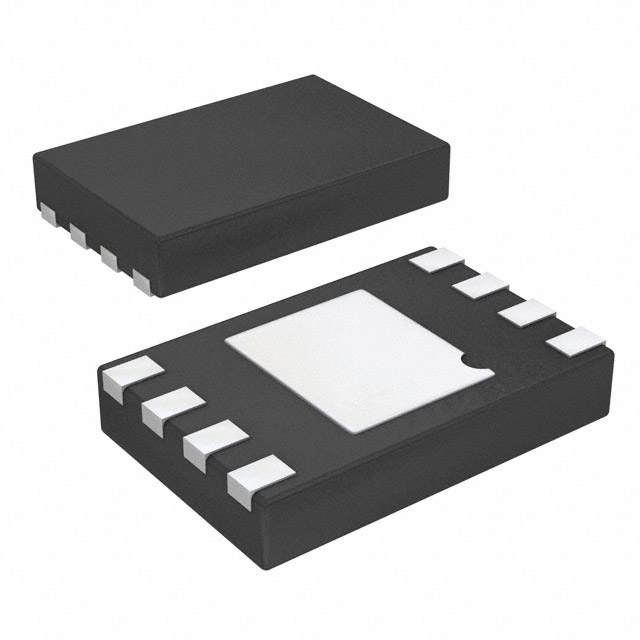

TELECOM CIRCUIT, 1-FUNC, PDSO8, 2.10 X 1.60 MM, GREEN, DFN-8
Deep-Dive with AI
Search across all available documentation for this part.
AP22800HB-7
ActiveDiodes Inc
TELECOM CIRCUIT, 1-FUNC, PDSO8, 2.10 X 1.60 MM, GREEN, DFN-8
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AP22800HB-7 |
|---|---|
| Current - Output (Max) [Max] | 4 A |
| Fault Protection | UVLO |
| Features | Slew Rate Controlled, Power Good |
| Input Type | Non-Inverting |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Package / Case | 8-UFDFN Exposed Pad |
| Ratio - Input:Output [custom] | 1:1 |
| Rds On (Typ) | 19 mOhm |
| Supplier Device Package | U-DFN2116-8 |
| Switch Type | General Purpose |
| Voltage - Load [Max] | 5.5 V |
| Voltage - Load [Min] | 1.5 V |
| Voltage - Supply (Vcc/Vdd) | False |
