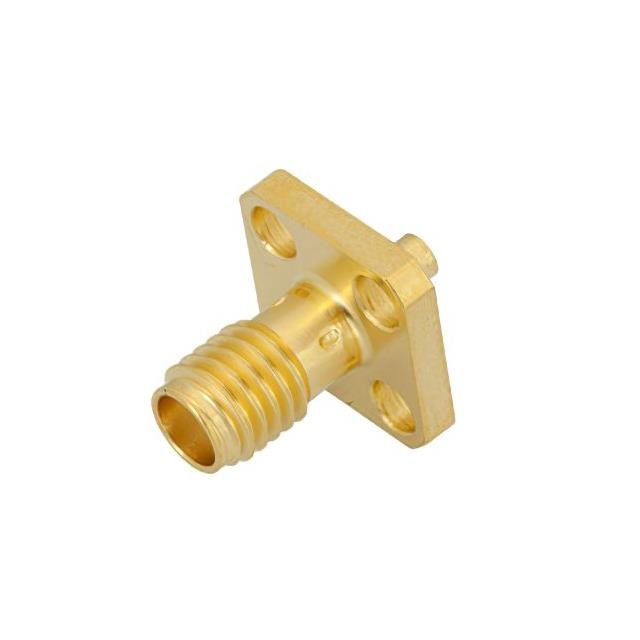

PE44438
ObsoletePasternack
SSMA FEMALE CONNECTOR SOLDER ATT
PE44438
ObsoletePasternack
SSMA FEMALE CONNECTOR SOLDER ATT
Description
General part information
PE44438
SSMA Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE44438 |
|---|---|
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Cable Group | Semi Rigid |
| Cable Group Size | 0.047 " |
| Center Contact Plating | Gold |
| Connector Style | SSMA |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Solder |
