SS49
ObsoleteHoneywell Sensing and Productivity Solutions
BOARD MOUNT MOTION & POSITION SENSORS ANALOG POSITION LINEAR POS.
SS49
ObsoleteHoneywell Sensing and Productivity Solutions
BOARD MOUNT MOTION & POSITION SENSORS ANALOG POSITION LINEAR POS.
Description
General part information

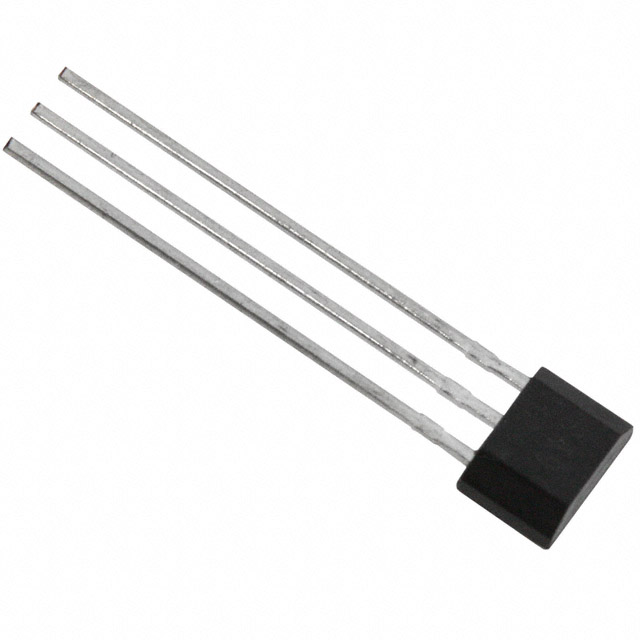

SS49
Hall Effect Sensor Single Axis
Technical Specifications
Parameters and characteristics for this part
| Specification | SS49 |
|---|---|
| Axis | Single |
| Current - Output (Max) | 20 mA |
| Current - Supply (Max) | 4 mA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Analog Voltage |
| Package / Case | 3-SIP |
| Technology | Hall Effect |
| Voltage - Supply (Maximum) | 10 V |
| Voltage - Supply (Minimum) | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
