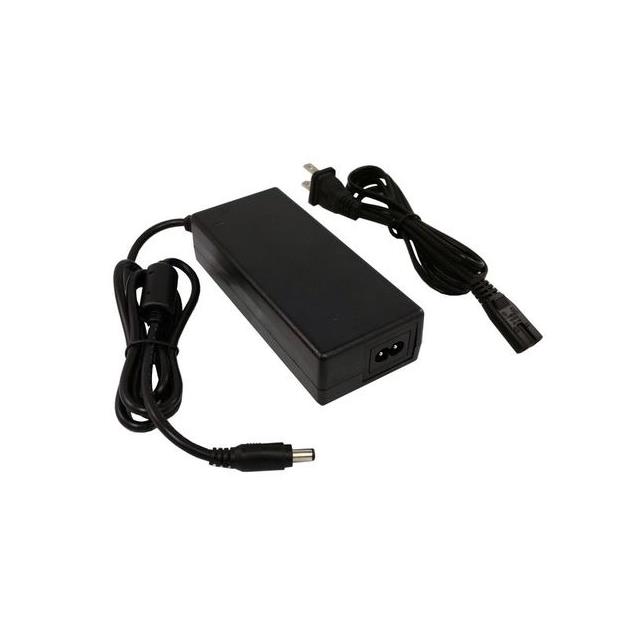

PS36V-2.5

Active

Tycon Systems Inc.

AC/DC DESKTOP ADAPTER 36V 90W

Search across all available documentation for this part.

Active

Tycon Systems Inc.

AC/DC DESKTOP ADAPTER 36V 90W

Technical Specifications

Parameters and characteristics for this part

AC/DC DESKTOP ADAPTER 36V 90W

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Input Connector	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Form	Applications	Efficiency	Power (Watts)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Polarization	Output Connector	Output Connector [diameter]	Output Connector [z]	Cord Length	Cord Length	Region Utilized	Voltage - Output	Input Type
Tycon Systems Inc. PS36V-2.5	-20 C	60 °C	2.5 A	IEC 320-C8	CE, FCC, UL	90 VAC	264 VAC	Desktop (Class II)	ITE (Commercial)	80 %	90 W	2.36 "	60 mm	34 mm	140 mm	1.34 in	5.51 "	Positive Center	Barrel Plug	2.1 mm, 5.5 mm	11 mm	1.2 m	47.2 in	International	36 V	Cord

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 50.99

General part information

36V 90 W AC/DC External Desktop (Class II) Adapter Cord Input
