Description
General part information
09643127800

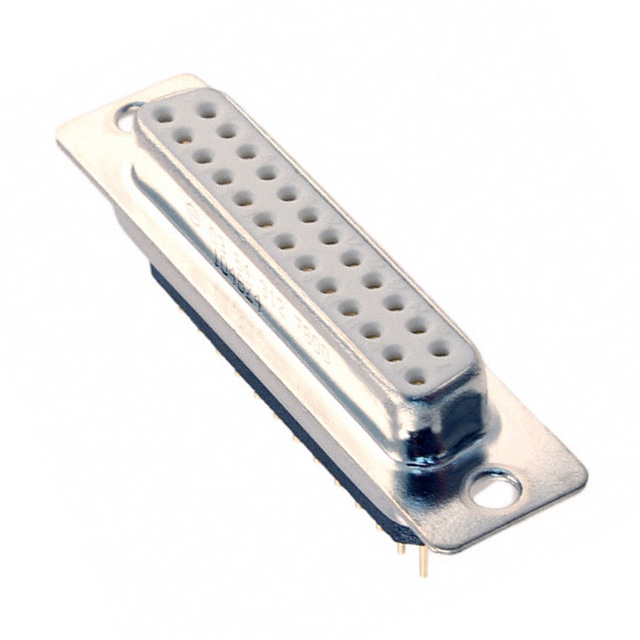

25 Position D-Sub Receptacle, Female Sockets Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 09643127800 |
|---|---|
| Connector Layout | DB, B |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Form | Stamped |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating | 7.5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Filter |
| Finish | Tin Plated |
| Flange Feature | Shell (Unthreaded), Housing |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Shell Material | Steel |
| Shell Size | 3 |
| Termination | Solder |
| Voltage Rating | 250 V |
