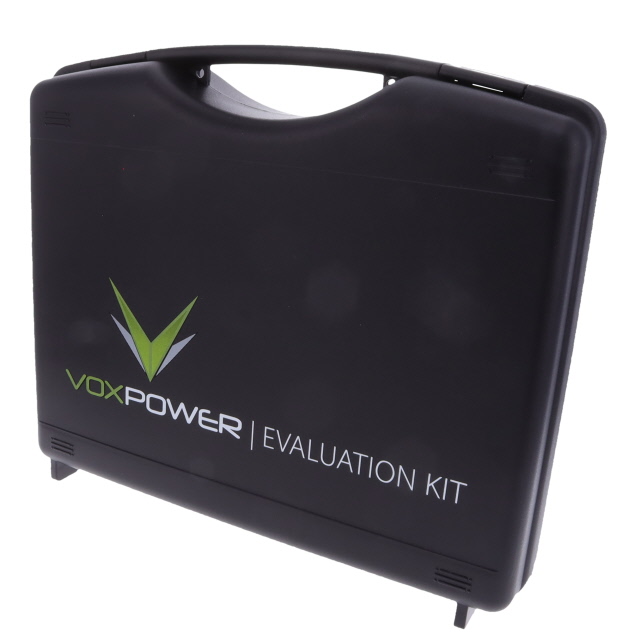

ACC-EVAL-KIT

Active

Vox Power Ltd.

POWER MANAGEMENT IC DEVELOPMENT TOOLS VCCM600 EVALUATION KIT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

ACC-EVAL-KIT

Active

Vox Power Ltd.

POWER MANAGEMENT IC DEVELOPMENT TOOLS VCCM600 EVALUATION KIT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ACC-EVAL-KIT	VCCM600 Series

Accessory Type	-	Thermal Interface
Applications	-	ITE (Commercial), Medical
Approval Agency	-	CB, CSA, UL, CE
Contents	Accessories, Board(s), Cable(s)	Accessories, Board(s), Cable(s)
Current - Output 1	-	3.75 - 25 A
Current - Output 2	-	3.75 - 25 A
Current - Output 3	-	3.75 - 25 A
Current - Output 4	-	3.75 - 15 A
Efficiency	-	90 %
Embedded	False	False
Features	-	Adjustable Output, Universal Input, Load Sharing, Remote Sense, PFC
For Use With/Related Products	-	VCCM600 Series
Function	Configurable Power Supply	Configurable Power Supply
Minimum Load Required	-	False
Mounting Type	-	Chassis Mount
Number of Outputs	-	1 - 4
Operating Temperature	-	-40 °C
Operating Temperature	-	70 °C
Power (Watts)	-	125 - 600 W
Primary Attributes	4-Channel (Quad)	4-Channel (Quad)
Size / Dimension	-	1.57 "
Size / Dimension	-	4 "
Size / Dimension	-	40 mm
Size / Dimension	-	177.8 mm
Size / Dimension	-	7 "
Size / Dimension	-	101.6 mm
Standard Number	-	60950-1, 62368-1, 60601-1
Supplied Contents	Board(s), Accessories, Cable(s)	Board(s), Accessories, Cable(s)
Type	Power Management	Open Frame, Power Management
Utilized IC / Part	VCCM600M	VCCM600M
Voltage - Input	-	85 - 120 VAC
Voltage - Input	-	264 - 370 VDC
Voltage - Isolation	-	4000 V
Voltage - Output 1	-	5 - 48 V
Voltage - Output 2	-	5 - 48 V
Voltage - Output 3	-	5 - 48 V
Voltage - Output 4	-	5 - 24 V

VCCM600 Series

AC/DC CONVERTER 5V 48V 12V 425W

...

Part	Mounting Type	Efficiency	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 3	Power (Watts)	Voltage - Output 2	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Type	Standard Number	Current - Output 1	Current - Output 3	Number of Outputs	Applications	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Current - Output 2	Current - Output 4	Voltage - Output 4
Vox Power Ltd. VCCM600S-A0DB-DK000	Chassis Mount	90 %	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	1.57 "	4 "	40 mm	177.8 mm	7 "	101.6 mm	12 V	425 W	48 V	-40 °C	70 °C	4000 V	Open Frame	60950-1, 62368-1	25 A	15 A	3	ITE (Commercial)	CB, CE, CSA, UL	85 VAC, 120 VDC	264 VAC, 370 VDC	5 V	3.75 A
Vox Power Ltd. VCCM600S-AACB-DK000	Chassis Mount	90 %	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	1.57 "	4 "	40 mm	177.8 mm	7 "	101.6 mm	24 V	550 W	5 V	-40 °C	70 °C	4000 V	Open Frame	60950-1, 62368-1	25 A	7.5 A	4	ITE (Commercial)	CB, CE, CSA, UL	85 VAC, 120 VDC	264 VAC, 370 VDC	5 V	25 A	15 A	12 V
Vox Power Ltd. VCCM600M-C0CD-DK000	Chassis Mount	90 %	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	1.57 "	4 "	40 mm	177.8 mm	7 "	101.6 mm	48 V	450 W	24 V	-40 °C	70 °C	4000 V	Open Frame	60601-1		3.75 A	3	Medical	CB, CE, CSA, UL	85 VAC, 120 VDC	264 VAC, 370 VDC	24 V	7.5 A
Vox Power Ltd. VCCM600S-0BBD-DK000	Chassis Mount	90 %	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	1.57 "	4 "	40 mm	177.8 mm	7 "	101.6 mm	48 V	450 W	12 V	-40 °C	70 °C	4000 V	Open Frame	60950-1, 62368-1	15 A	3.75 A	3	ITE (Commercial)	CB, CE, CSA, UL	85 VAC, 120 VDC	264 VAC, 370 VDC	12 V	15 A
Vox Power Ltd. VCCM600M-CDBD-DK000	Chassis Mount	90 %	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	1.57 "	4 "	40 mm	177.8 mm	7 "	101.6 mm	12 V	600 W	48 V	-40 °C	70 °C	4000 V	Open Frame	60601-1		15 A	4	Medical	CB, CE, CSA, UL	85 VAC, 120 VDC	264 VAC, 370 VDC	24 V	3.75 A	3.75 A
Vox Power Ltd. VCCM600M-AAAA-DK000	Chassis Mount	90 %	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	1.57 "	4 "	40 mm	177.8 mm	7 "	101.6 mm	5 V	500 W	5 V	-40 °C	70 °C	4000 V	Open Frame	60601-1	25 A	25 A	4	Medical	CB, CE, CSA, UL	85 VAC, 120 VDC	264 VAC, 370 VDC	5 V	25 A		5 V
Vox Power Ltd. VCCM600S-BD0C-DK000	Chassis Mount	90 %	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	1.57 "	4 "	40 mm	177.8 mm	7 "	101.6 mm	24 V	450 W	48 V	-40 °C	70 °C	4000 V	Open Frame	60950-1, 62368-1	15 A	7.5 A	3	ITE (Commercial)	CB, CE, CSA, UL	85 VAC, 120 VDC	264 VAC, 370 VDC	12 V	3.75 A
Vox Power Ltd. VCCM600S-ACAD-DK000	Chassis Mount	90 %	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	1.57 "	4 "	40 mm	177.8 mm	7 "	101.6 mm	5 V	550 W	24 V	-40 °C	70 °C	4000 V	Open Frame	60950-1, 62368-1	25 A	25 A	4	ITE (Commercial)	CB, CE, CSA, UL	85 VAC, 120 VDC	264 VAC, 370 VDC	5 V	7.5 A	3.75 A
Vox Power Ltd. VCCM600S-BCAD-DK000	Chassis Mount	90 %	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	1.57 "	4 "	40 mm	177.8 mm	7 "	101.6 mm	5 V		24 V	-40 °C	70 °C	4000 V	Open Frame	60950-1, 62368-1	15 A	25 A	4	ITE (Commercial)	CB, CE, CSA, UL	85 VAC, 120 VDC	264 VAC, 370 VDC	12 V	7.5 A	3.75 A
Vox Power Ltd. VCCM600S-BAAD-DK000	Chassis Mount	90 %	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	1.57 "	4 "	40 mm	177.8 mm	7 "	101.6 mm	5 V	550 W	5 V	-40 °C	70 °C	4000 V	Open Frame	60950-1, 62368-1	15 A	25 A	4	ITE (Commercial)	CB, CE, CSA, UL	85 VAC, 120 VDC	264 VAC, 370 VDC	12 V	25 A	3.75 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 660.00
Sager	N/A	1	$ 687.50
		10	$ 687.50
		25	$ 687.50
		100	$ 687.50

Description

General part information

VCCM600 Series

VCCM600M Configurable Power Supply Power Management Evaluation Board
