11938KA-12J-EL-00
ActiveNMB TECHNOLOGIES

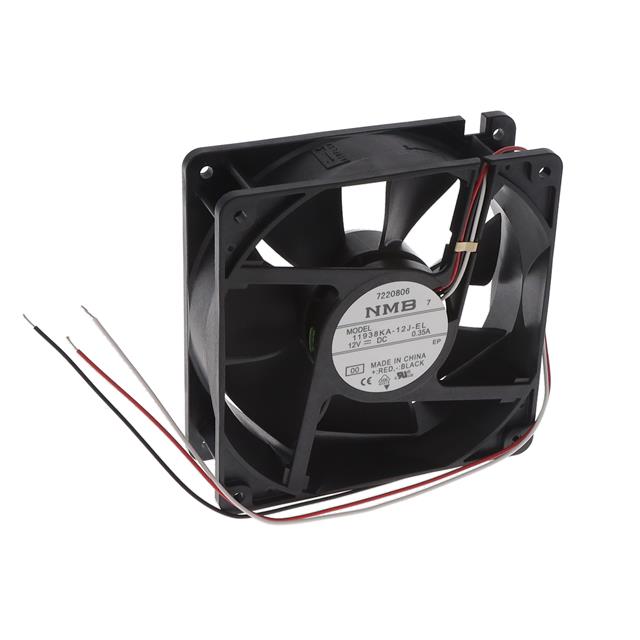

DC AXIAL FAN, 12 V, SQUARE, 119 MM, 38 MM, BALL BEARING, 83.6 CFM
11938KA-12J-EL-00
ActiveNMB TECHNOLOGIES
DC AXIAL FAN, 12 V, SQUARE, 119 MM, 38 MM, BALL BEARING, 83.6 CFM
Description
General part information
11938KA-12J-EL-00
Fan Tubeaxial 12VDC Square - 119mm L x 119mm H Ball 3 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | 11938KA-12J-EL-00 |
|---|---|
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Locked Rotor Sensor |
| Lifetime | 100000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Operating Temperature (Max) | 158 °F |
| Operating Temperature (Min) | 14 °F |
| Size / Dimension Height | 119 mm |
| Size / Dimension Length | 119 mm |
| Size / Dimension Shape | Square |
| Termination | 3 Wire Leads |
| Termination Leads Count | 3 |
| Termination Type | Wire Leads |
| Voltage - Rated | 12 VAC |
| Voltage Range (Max) | 13.8 VDC |
| Voltage Range (Min) | 6 VDC |
| Width | 38.4 mm |
