MR-28406-000
ObsoleteKnowles Syfer

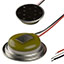

MICROPHONE COND ANALOG OMNI
MR-28406-000
ObsoleteKnowles Syfer
MICROPHONE COND ANALOG OMNI
Description
General part information
MR-28406-000
100 Hz ~ 4.7 kHz Analog Microphone Electret Condenser Omnidirectional (-60dB +2dB, -5dB @ 74dB SPL) Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | MR-28406-000 |
|---|---|
| Current - Supply | 50 µA |
| Direction | Omnidirectional |
| Frequency Range (Max) | 4.7 kHz |
| Frequency Range (Min) | 100 Hz |
| Height (Max) | 0.299 in |
| Impedance | 3.5 kOhms |
| Output Type | Analog |
| Port Location | Side |
| Ratings | Waterproof |
| Sensitivity (Nominal) | -60 dB |
| Sensitivity Negative Tolerance | 5 dB |
| Sensitivity Positive Tolerance | 2 dB |
| Shape | Circular |
| Size / Dimension Diameter | 0.871 in |
| Termination | Wire Leads |
| Type | Electret Condenser |
| Voltage - Rated | 1.3 VDC |
