VU-215F3

VU-215F3

Obsolete
KEMET

POWER LINE FILTER, 1 PHASE, 15A, QC ROHS COMPLIANT: YES

Find alt
VU-215F3

VU-215F3

Obsolete
KEMET

POWER LINE FILTER, 1 PHASE, 15A, QC ROHS COMPLIANT: YES

Find alt

Description

General part information

VU-215F3

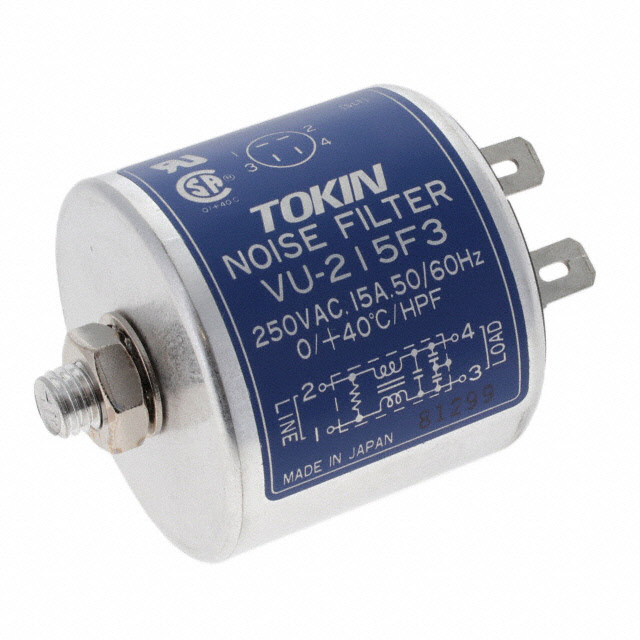

Single Phase EMC/EMI Line Filter 15 A 250V 250V Single Stage Quick Connect, Threaded Post (M8)

Technical Specifications

Parameters and characteristics for this part

SpecificationVU-215F3
ApplicationsGeneral Purpose
Approval AgencyUL, CSA
ConfigurationSingle Stage
Current15 A
Filter TypeSingle Phase
Mounting TypeChassis Mount
Operating Temperature (Max)55 °C
Operating Temperature (Min)-25 °C
Termination StyleQuick Connect, Threaded Post (M8)
Voltage - Rated AC250 V
Voltage - Rated DC250 V
