1740314
ActivePhoenix Contact
TERM BLOCK HDR 10POS VERT 5MM
1740314
ActivePhoenix Contact
TERM BLOCK HDR 10POS VERT 5MM
Description
General part information
1740314

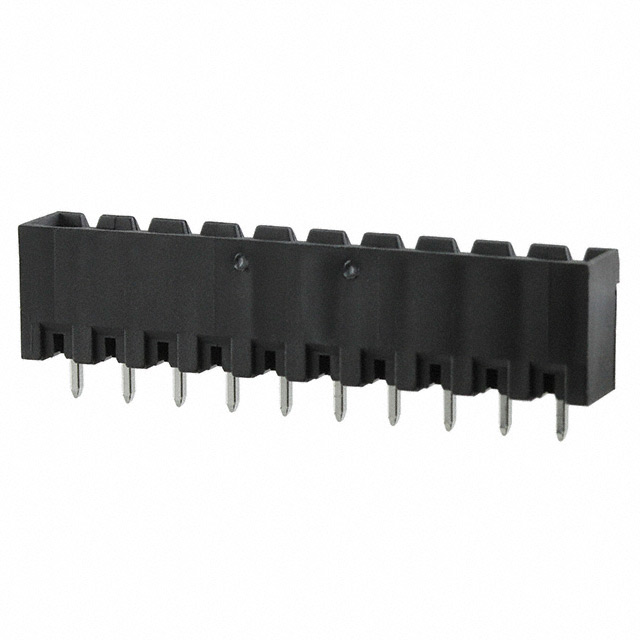

10 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) Vertical Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1740314 |
|---|---|
| Color | Black |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.154 in |
| Current - IEC | 12 A |
| Header Orientation | Vertical |
| Insulation Height | 0.472 in |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 10 |
| Pitch | 0.197 in |
| Positions Per Level | 10 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - IEC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
