Y092615R0500T0L
ActiveVPG Foil Resistors
RES 15.05 OHM 8W 0.01% TO220-4
Y092615R0500T0L
ActiveVPG Foil Resistors
RES 15.05 OHM 8W 0.01% TO220-4
Description
General part information
Y092615R0500T0L

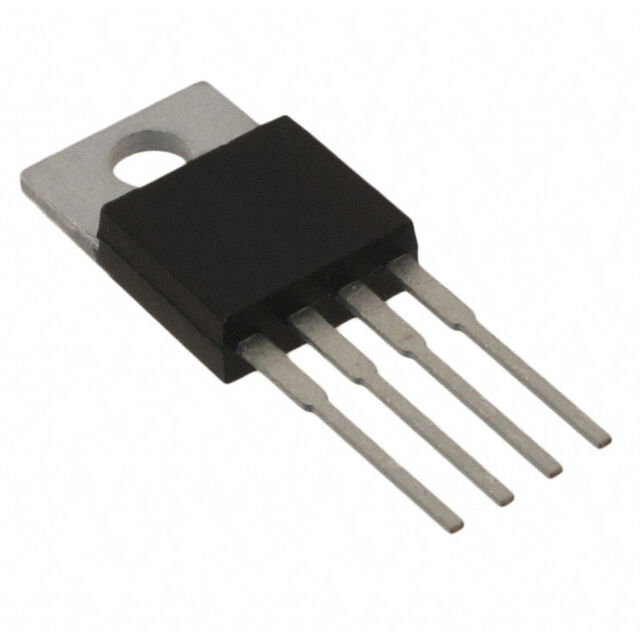

15.05 Ohms ±0.01% 8W Through Hole Resistor TO-220-4 Non-Inductive Metal Foil
Technical Specifications
Parameters and characteristics for this part
| Specification | Y092615R0500T0L |
|---|---|
| Composition | Metal Foil |
| Features | Non-Inductive |
| Height - Seated (Max) | 0.845 in |
| Number of Terminations | 4 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | TO-220-4 |
| Package Name | TO-220 |
| Power (Watts) | 8 W |
| Resistance | 15.05 Ohms |
| Size / Dimension Length | 0.4 in |
| Size / Dimension Width | 0.15 in |
| Temperature Coefficient | 2 ppm/°C |
| Tolerance | 0.01 % |
