145046080540868+

Active

KYOCERA AVX

BOARD TO BOARD

Search across all available documentation for this part.

Active

KYOCERA AVX

BOARD TO BOARD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	145046080540868+	145046 Series

Connector Type	Outer Shroud Contacts, Plug	Outer Shroud Contacts, Plug
Contact Finish	Gold	Gold
Contact Finish Thickness	-	4 Áin
Contact Finish Thickness	-	0.1 Ám
Features	Solder Retention	Solder Retention, Pick and Place
Height Above Board	0.13 in	0.13 - 0.15 in
Height Above Board	3.3 mm	3.3 - 3.8 mm
Height Above Board	-	0.091 - 0.11 in
Height Above Board	-	2.3 - 2.8 mm
Mated Stacking Heights	4 mm	3 - 4 mm
Mounting Type	Surface Mount	Surface Mount
Number of Positions	80	20 - 120
Number of Rows	2	2
Pitch [x]	0.5 mm	0.5 mm
Pitch [x]	0.02 in	0.02 in

BOARD TO BOARD

...

Part	Pitch [x]	Pitch [x]	Mated Stacking Heights	Mounting Type	Features	Number of Positions	Number of Rows	Connector Type	Contact Finish	Height Above Board	Height Above Board	Height Above Board [z]	Height Above Board [z]
KYOCERA AVX 145046100540868+	0.5 mm	0.02 in	4 mm	Surface Mount	Solder Retention	100	2	Outer Shroud Contacts, Plug	Gold	0.13 in	3.3 mm
KYOCERA AVX 145046080530868+	0.5 mm	0.02 in	3 mm	Surface Mount	Solder Retention	80	2	Outer Shroud Contacts, Plug	Gold			0.091 in	2.3 mm
KYOCERA AVX 145046070130868+	0.5 mm	0.02 in	3 mm	Surface Mount	Solder Retention	70	2	Outer Shroud Contacts, Plug	Gold			0.091 in	2.3 mm
KYOCERA AVX 145046050130868+	0.5 mm	0.02 in	3 mm	Surface Mount	Solder Retention	50	2	Outer Shroud Contacts, Plug	Gold			0.091 in	2.3 mm
KYOCERA AVX 145046100040868+	0.5 mm	0.02 in	4 mm	Surface Mount	Solder Retention	100	2	Outer Shroud Contacts, Plug	Gold	0.13 in	3.3 mm
KYOCERA AVX 145046040530868+	0.5 mm	0.02 in	3 mm	Surface Mount	Pick and Place	40	2	Outer Shroud Contacts, Plug	Gold			0.091 in	2.3 mm
KYOCERA AVX 145046070040868+	0.5 mm	0.02 in	4 mm	Surface Mount	Solder Retention	70	2	Outer Shroud Contacts, Plug	Gold	0.13 in	3.3 mm
KYOCERA AVX 145046080035868+	0.5 mm	0.02 in	3.5 mm	Surface Mount	Solder Retention	80	2	Outer Shroud Contacts, Plug	Gold			0.11 "	2.8 mm
KYOCERA AVX 145046020535868+	0.5 mm	0.02 in	3.5 mm	Surface Mount	Solder Retention	20	2	Outer Shroud Contacts, Plug	Gold			0.11 "	2.8 mm
KYOCERA AVX 145046120030868+	0.5 mm	0.02 in	3 mm	Surface Mount	Solder Retention	120	2	Outer Shroud Contacts, Plug	Gold			0.091 in	2.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

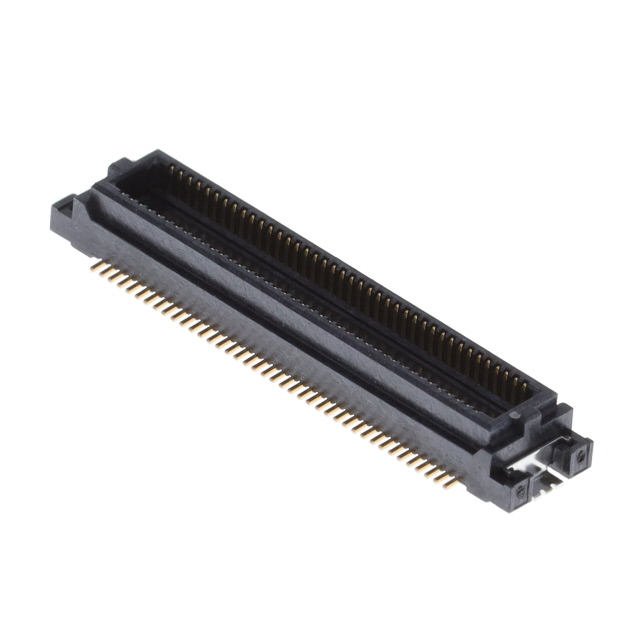

80 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold

Technical documentation and resources
