86571-2
ActiveTE Connectivity AMP Connectors

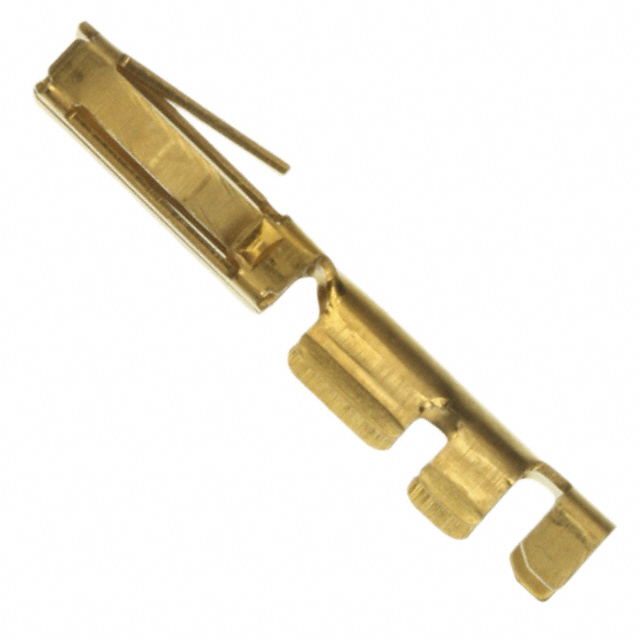

CONTACT FLAT FLEX SOCKET GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
86571-2
ActiveTE Connectivity AMP Connectors
CONTACT FLAT FLEX SOCKET GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 86571-2 | 86571 Series |
|---|---|---|
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 15 µin | 15 - 30 µin |
| Contact Finish Thickness | 0.38 µm | 0.38 - 0.76 µm |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
86571 Series
CONTACT FLAT FLEX SOCKET GOLD
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.12 | |
| 10 | $ 2.78 | |||
| 500 | $ 2.27 | |||
| 1000 | $ 2.03 | |||
| 5000 | $ 1.76 | |||
Description
General part information
86571 Series
Contact Crimp Socket 22-26 AWG Gold
